Defibrillators
All our defibrillators are specially designed for use by the general public.
Defibrillators analyze the heart rhythm and decide whether or not to deliver an electric shock, without the user being held responsible.

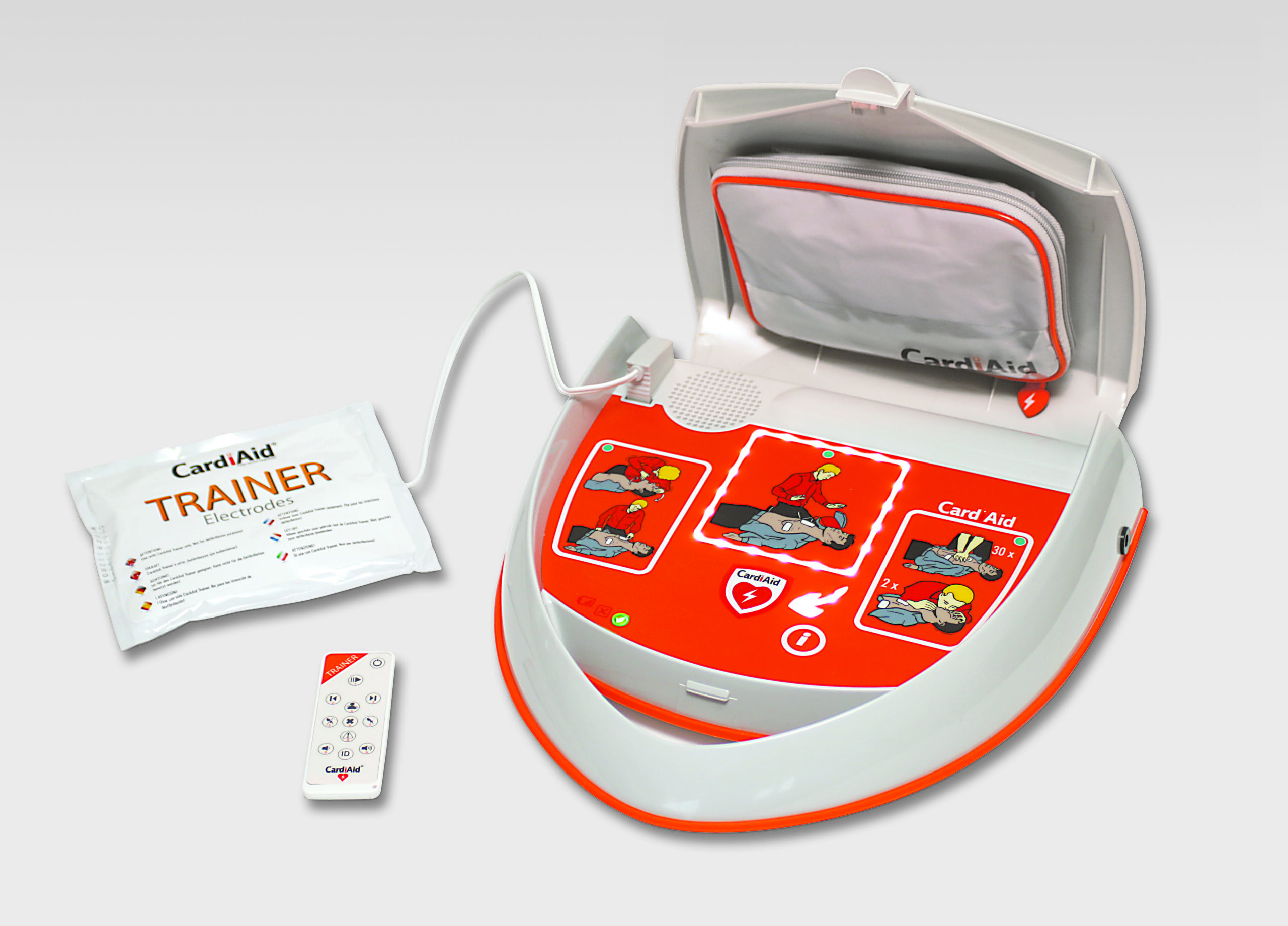

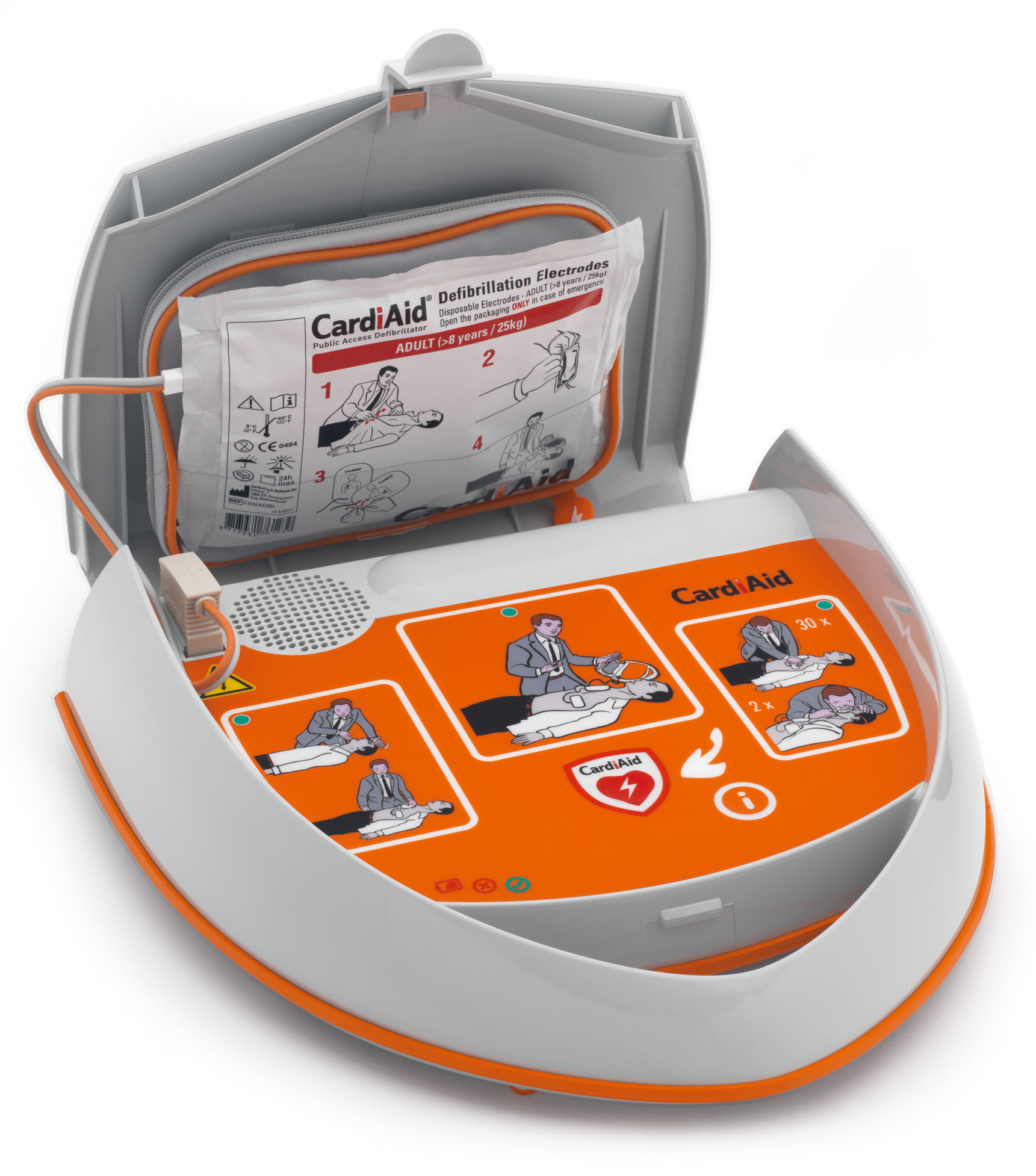

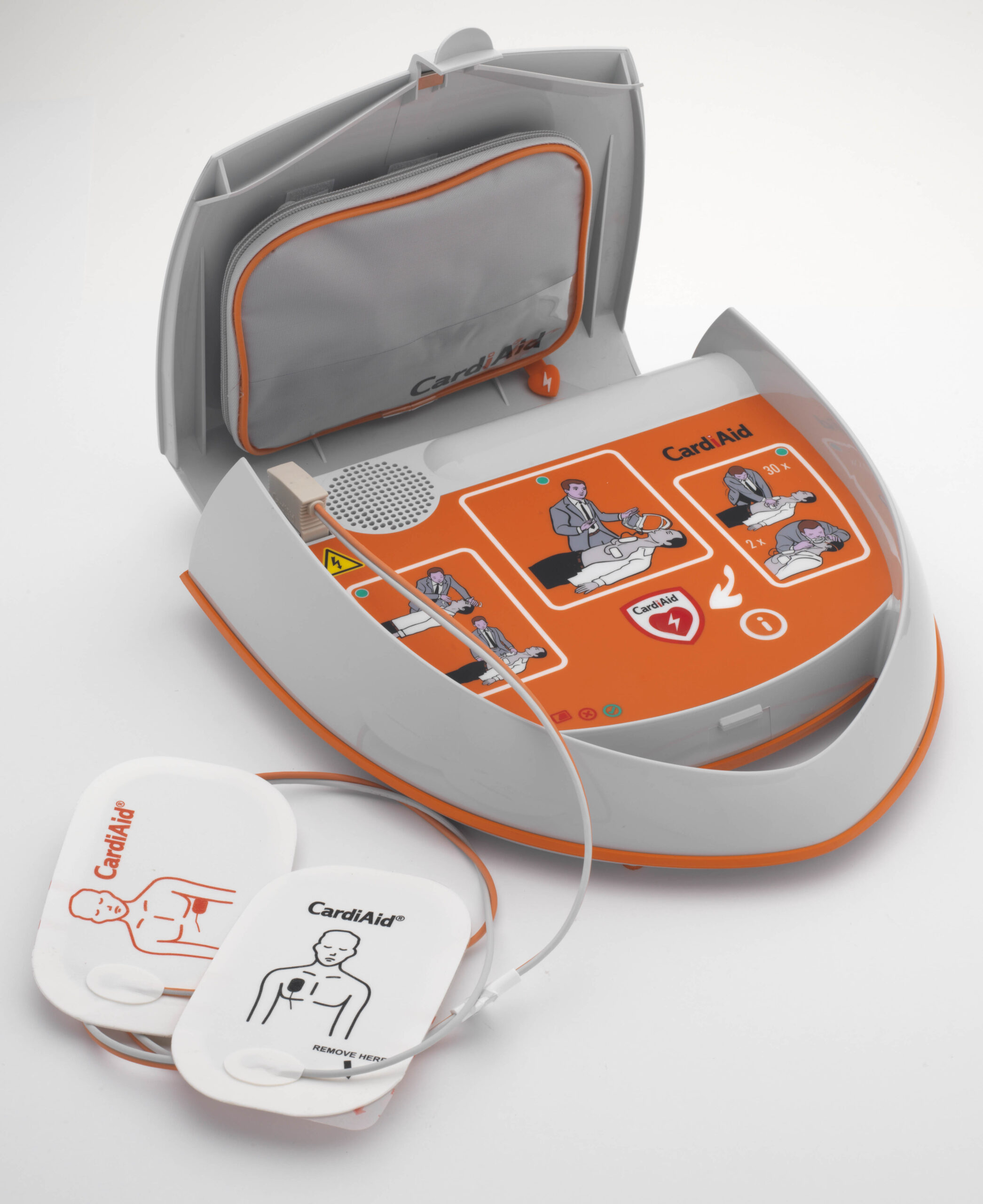

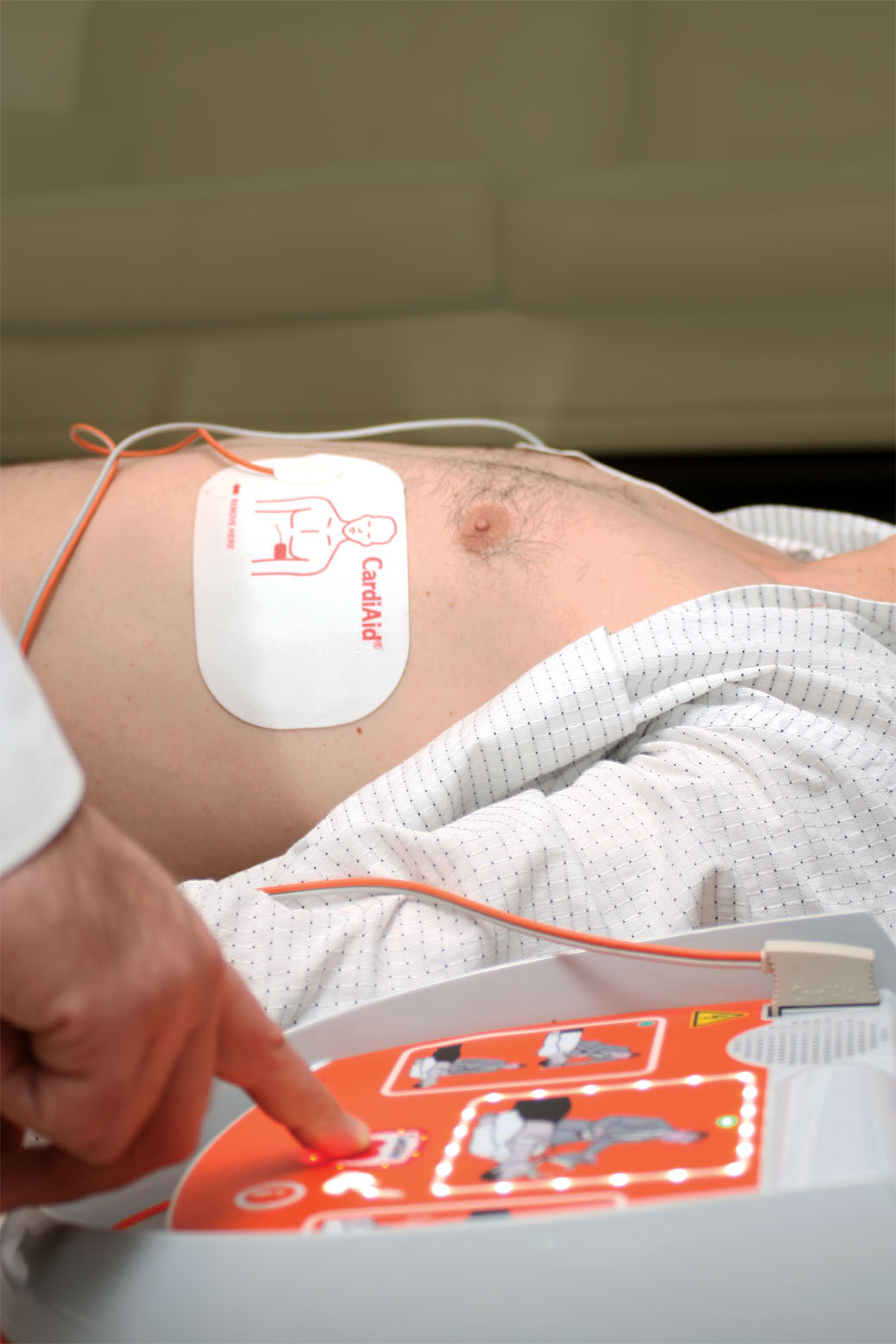

CardiAid semi-automatic defibrillator
The best value for money and after-sales service
- Switches on automatically, no on/off button required
- Integrated emergency kit (scissors, razor, pocket mask)
- Audible and visual indications for easy user guidance
- Only 1 button to press to deliver the shock when the device requests it
- Highly intuitive operation

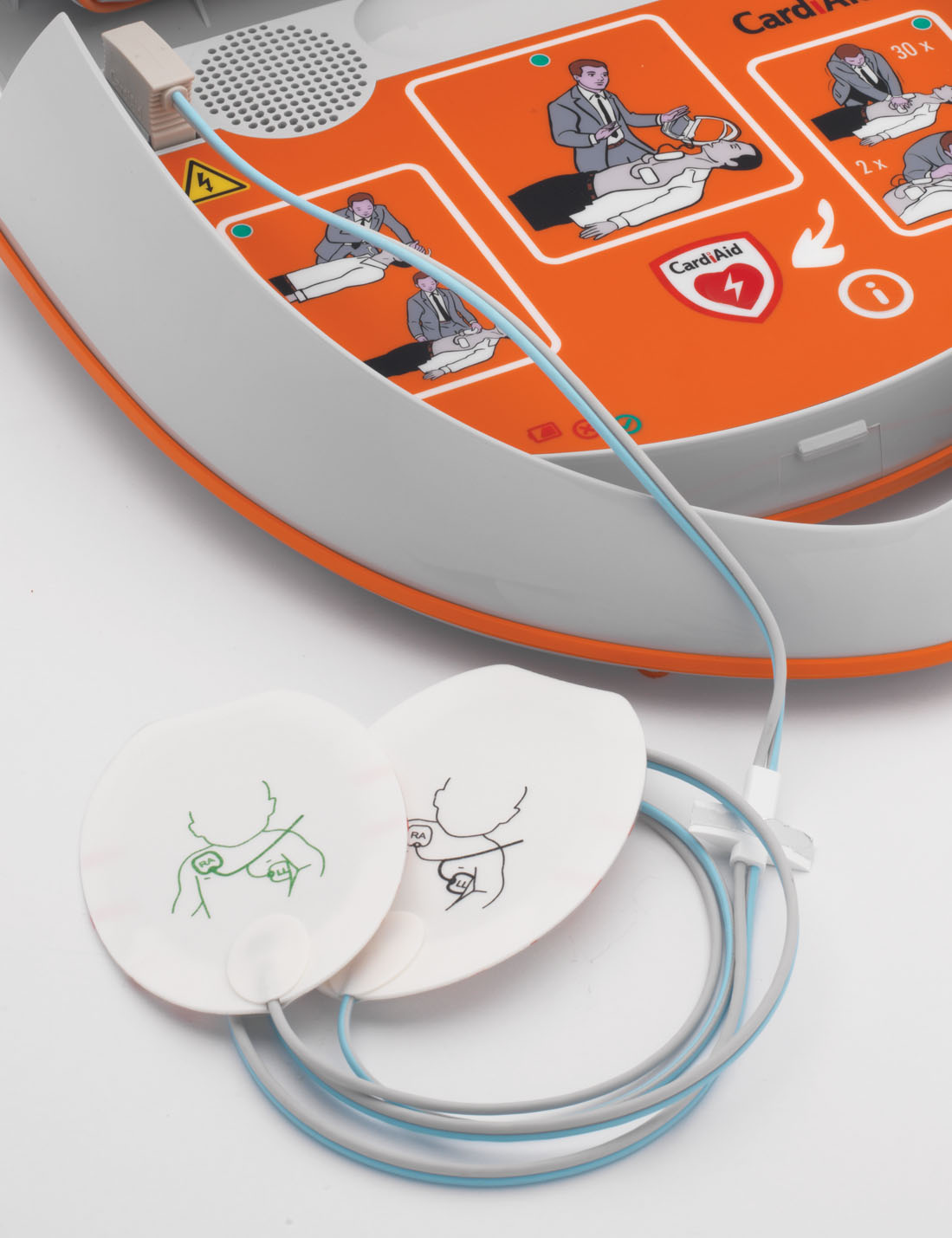

- Adaptable pediatric electrodes
Description
- Lights up instantly when lid is opened
- Voice and visual guidance for ease of use
- Just 3 steps to deliver the electric shock
- Just one button to press
- Integrated emergency kit (scissors, razor, mask for insufflations)
- Info button quickly informs rescuers of elapsed time / number of shocks performed
- Available in 25 languages
- 3 hours of data recording
- 210-shock battery
- Able to detect implants such as pacemakers and internal defibrillators
- Daily self-check to ensure device is ready for use
- IP55 dust and splash protection
Technical specifications
Defibrillation System
- Operating Mode:
Automated (CT0207RS: one button operation /
CT0207RF: full-automatic) - Wave Form: Biphasic, current-based
- Energy Delivery:
Adjusted to patient impedance,
Programmable (factory settings) - Delivered Energy – Adult Mode:
170J (Average for 50 Ω at low energy level)
270J (Average for 50 Ω at high energy level) - Delivered Energy – Paediatric Mode:
50J (Average for 50 Ω at low energy level)
75J (Average for 50 Ω at high energy level) - Shock Sequence:
Constant or escalating, Programmable (factory settings) - Charging Time:
Typically <10 seconds*, maximum <15 seconds*
ECG Analysis System
- Analysis Time: Typically <10 seconds*
- Derivation: II
- Asystole Threshold: <0,160 mV
- Specificity NSR / Asystole: >95**
- Sensitivity VF / pVT: >90**
- Reaction to Implanted Pacemaker:
Normal cardiac pacemaker rhythms are not detected as
shockable - Movement Detection:
Checks signal quality, gives acoustic warning at patient
movement
Operation
- Operating Elements:
i) Automatic switch-on when the cover is opened
ii) Flashing shock button (one-button operation for
CT0207RS, full-automatic operation for CT0207RF)

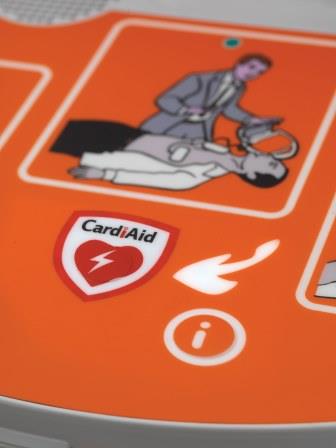

iii) Info-button
Info Mode:
Announcement of the elapsed time and number of shocks
since device started, when info-button is pressed - Display Elements:
Self-explanatory illuminated symbols (traffic light
principle). Device status indicator symbols (for self-test result)
Defibrillation Electrodes
- Range of Application:
Adult electrodes for patients >8 years / 25kg
Paediatric electrodes for patients 1-8 years / <25kg - Delivery Status:
Disposable, self-adhesive, single-use electrodes; ready-touse, sealed and packed with connector outside pouch - Polarization:
Not polarized (Exchange acceptable) - Active Surface Area:
200 cm2 (adult), 80 cm2 (paediatric) - Cable Length: 130 cm
- Shelf Life: 36 months from the manufacturing date (adult)
Data Management
- Event Documentation:
Automatic recording of ECG and event data in internal
memory up to 4 sessions with a total maximum duration of 2 hours 50 minutes - Data Transfer:
Bluetooth (only for authorized service providers) - Event Review and Device Programming:
Via Bluetooth connection to PC with CardiAid Monitor
Software (only for authorized service providers)
Self-Test
- Schedule:
Automatic; daily, monthly and when device is opened - Timing: Programmable (factory setting)
- Scope: Battery, electronics, software, charging

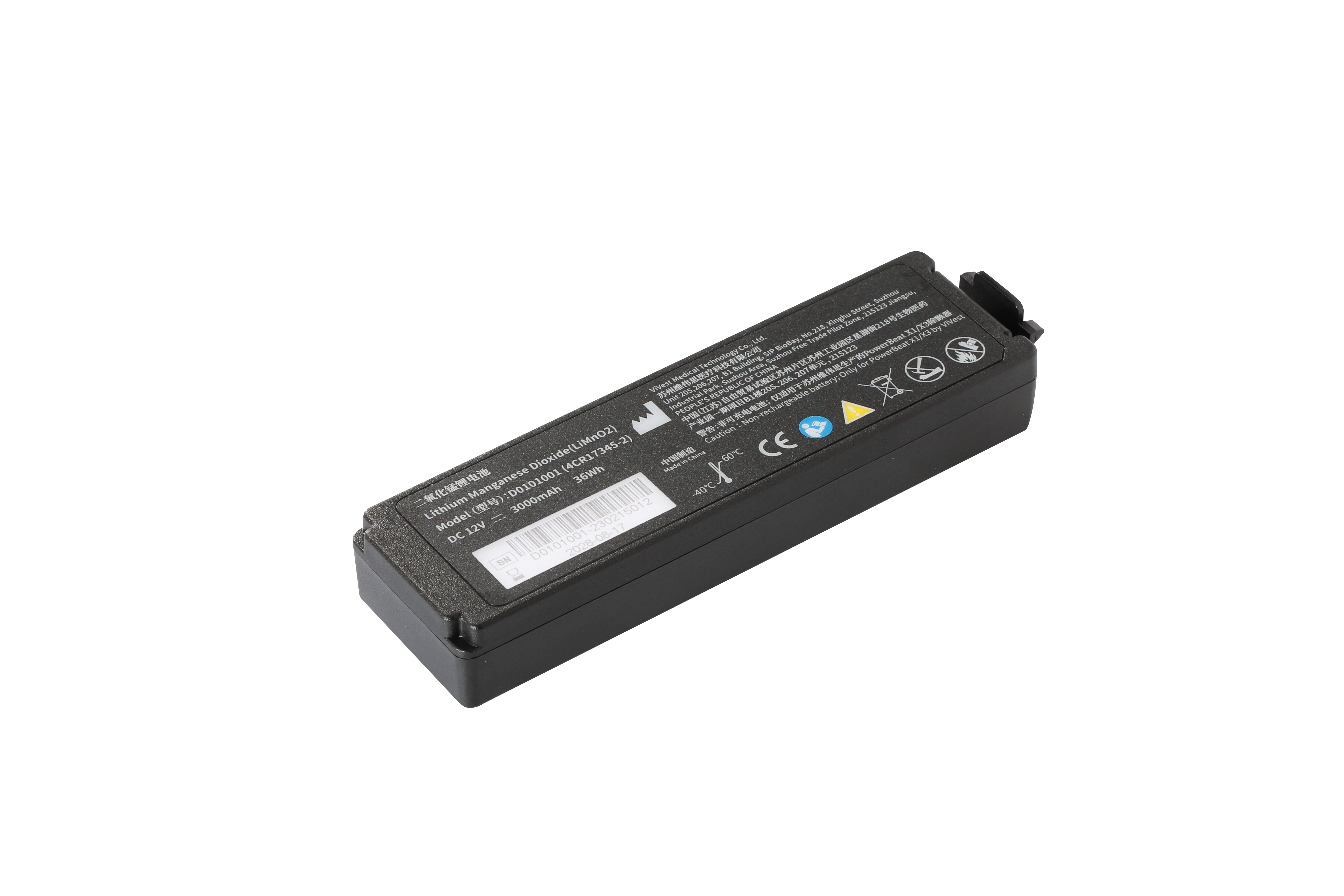

Energy Source*
- Type: Alkaline
- Capacity: Up to 210 shocks
- Monitoring Capacity: Up to 20 hours
- Stand-by Period: 42 Months
Environmental Conditions
- Operation:
i) Temperature: 0˚C to +50˚C
ii) Humidity: 0-95%
iii) Air Pressure: 572-1060h/PA - Storage and Transport:
i) Temperature: 0˚C to +50˚C
ii) Temperature: -20˚C to +70˚C (max 2 weeks, without
battery & electrodes)
ii) Humidity: 0-95%
iii) Air Pressure: 500-1060h/PA
Standards
- Device Class: IIb (93/42/EEC)
- Resuscitation Protocol: ERC, ILCOR 2020
- Norms: IEC 60601-2-4:2010
- EMC: EN 60601-1-2: 2015
- Free Drop: IEC 60601-1:2005+A1: 2012
- Protection Class: IEC 529: IP55 (protected against dust
and water jets)
Dimensions and Weight*
- Dimensions: 301 x 304 x 112mm
- Weight: 3,0 kg (including battery and electrodes)
Service and maintenance
Every 24 months, or after your CardiAid defibrillator has been in use, a CardiAid-certified technician will visit your site to service the defibrillator. 195 / year (included if renting)
- Replacing the battery
- Replacing defibrillation electrodes
- AED measurement using our diagnostic measurement equipment
- Reading data
- Software control
- If necessary, update software to latest ERC/NRR standards
- Checking for damage and faults
- After verification, the Cardiaid will be fitted with a quality control sticker.
- The interview report will be saved in your personal file.
- Helpdesk available 24/7

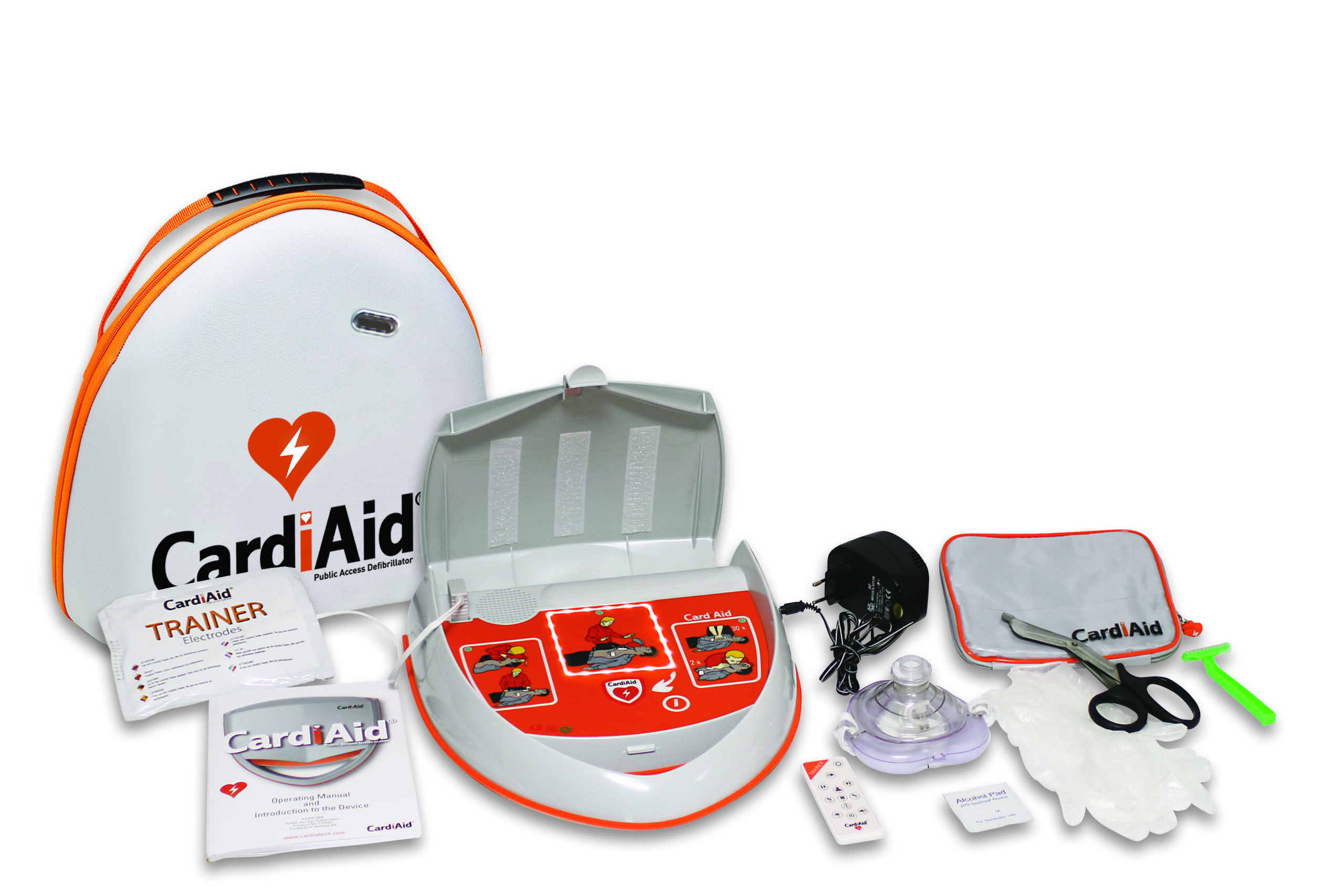

Order content
CardiAid semi-automatic external automated defibrillator (AED) CT0207RS
Electrode set
Battery

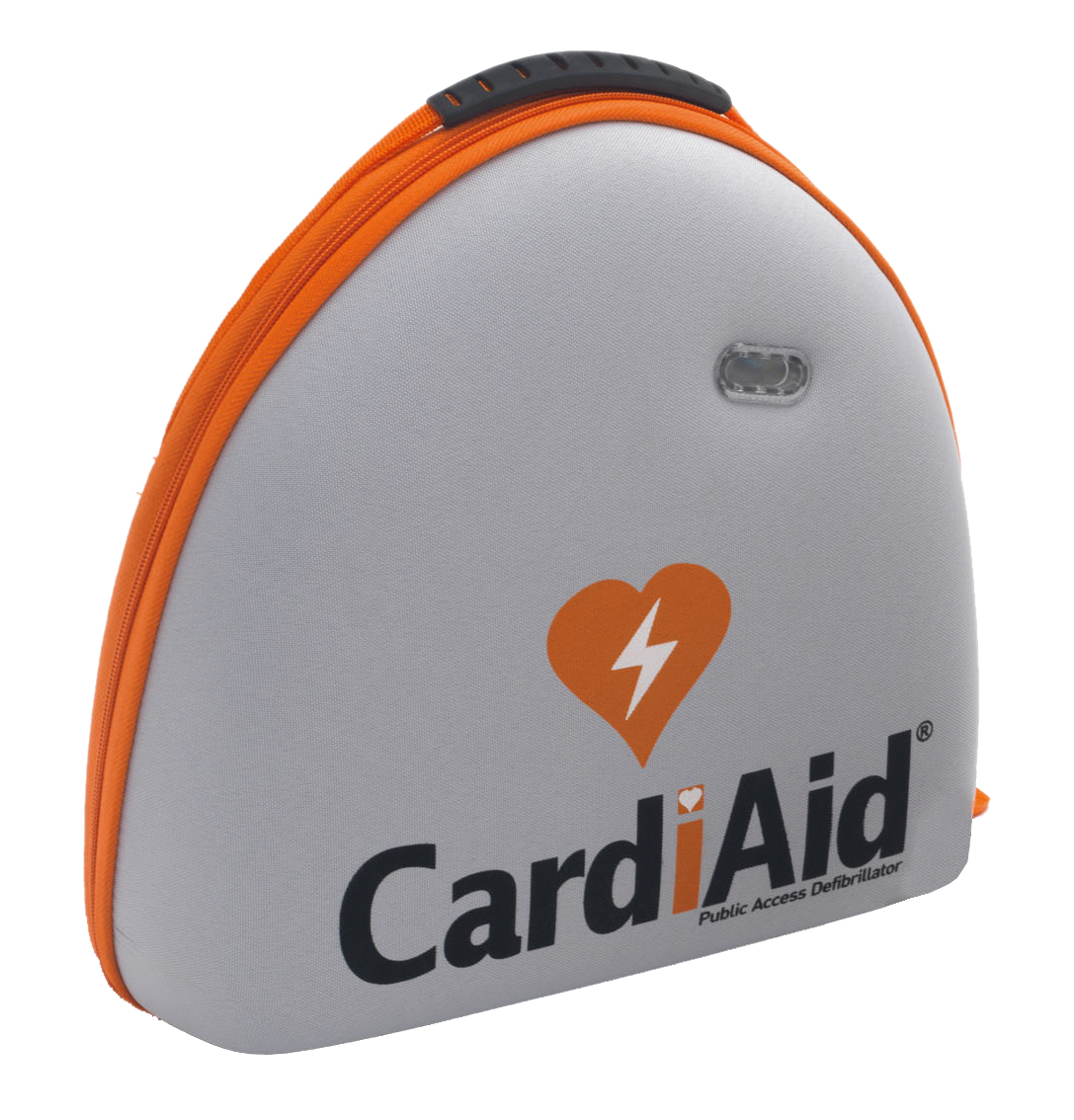

Carrying case
Integrated emergency kit with:
- Scissors
- Razor
- Latex gloves
- Disinfectant wipes
- Respiratory mask
Instruction manual
What is the CardiAid consumer defibrillator?

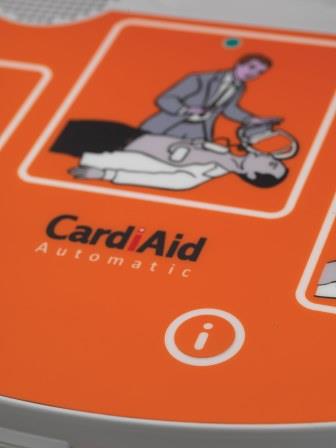

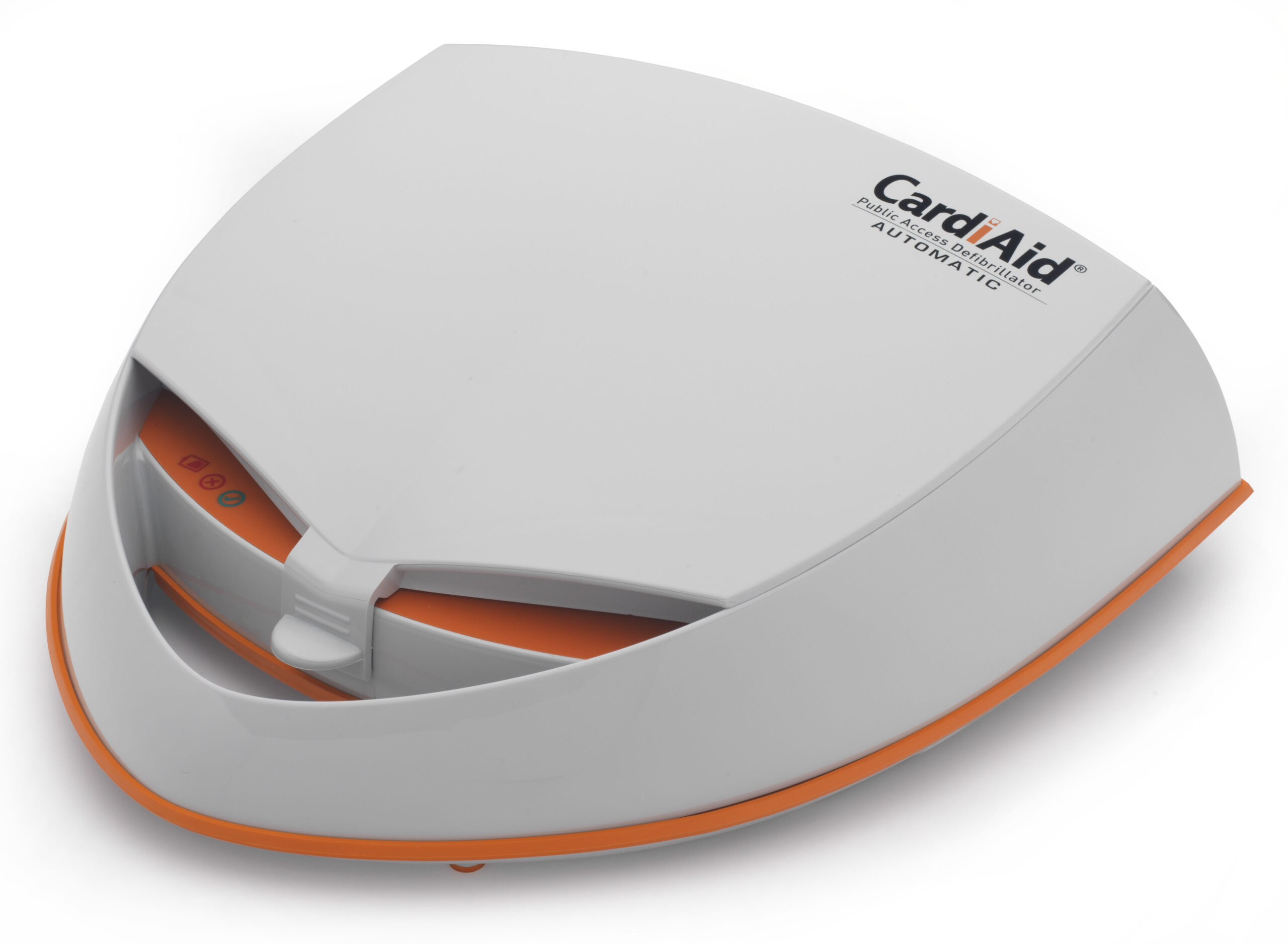

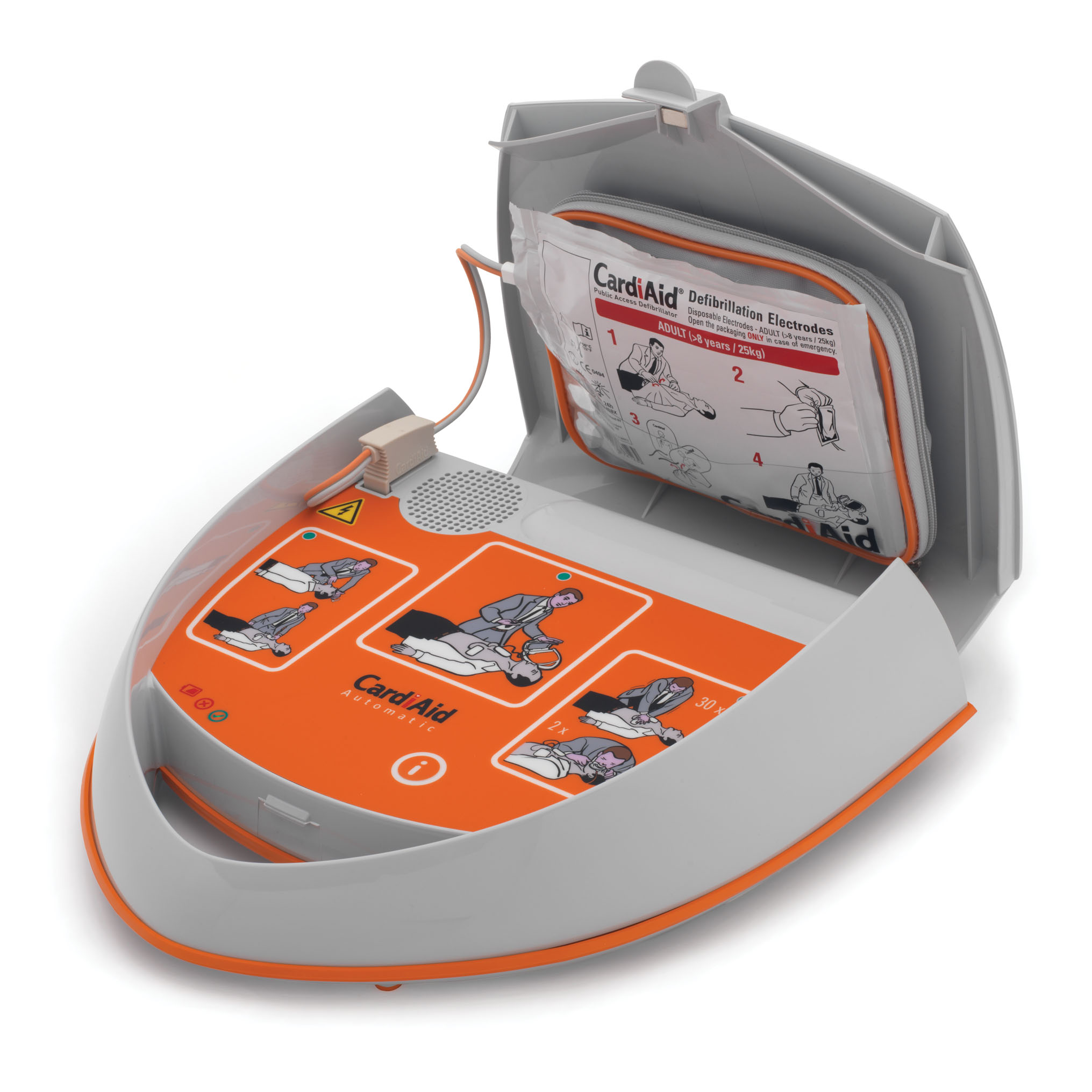

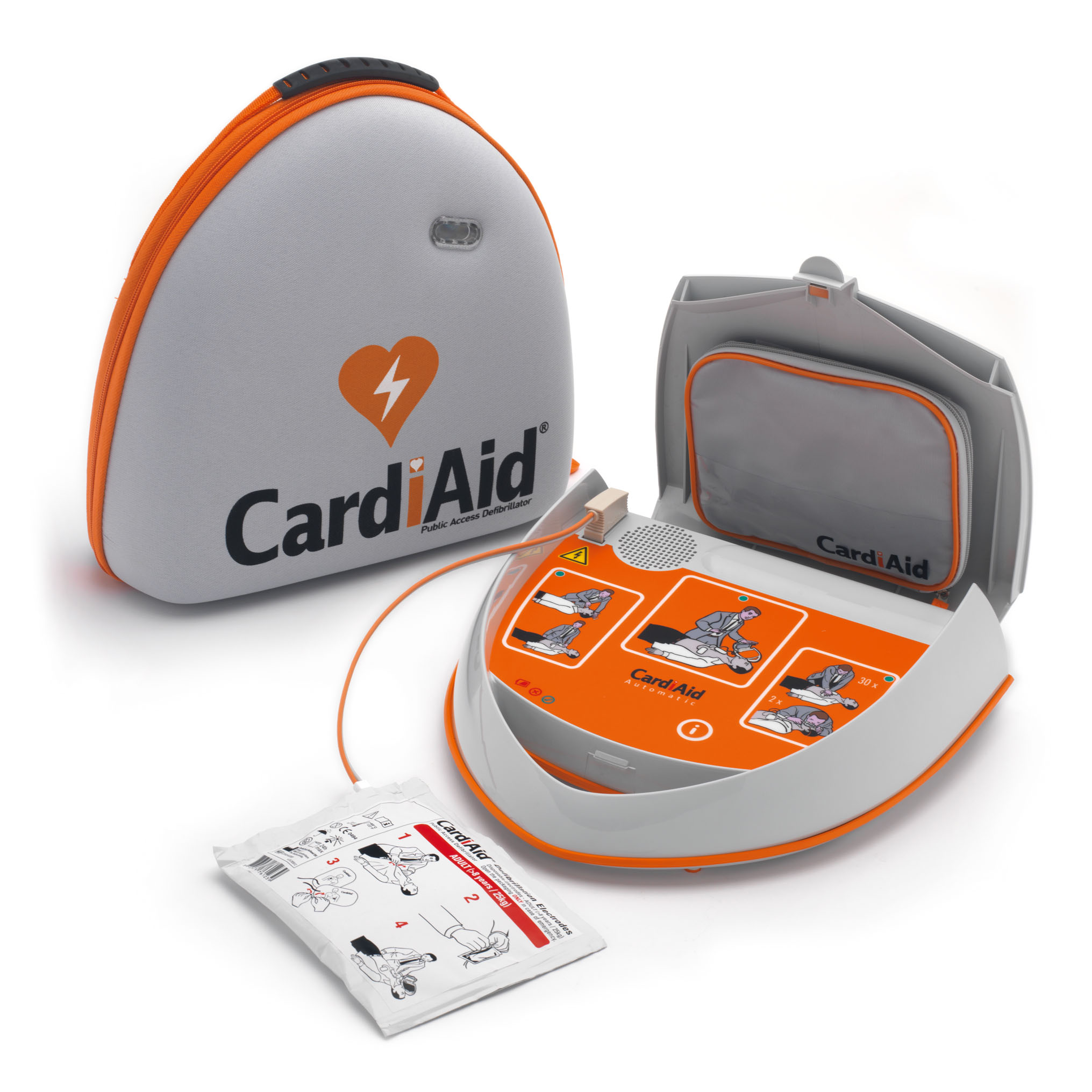

CardiAid fully automatic defibrillator
Defibrillator delivers shock without user action
- Switches on automatically, no on/off button required
- Integrated emergency kit (scissors, razor, pocket mask)
- Audible and visual indications for easy user guidance
- The device safely delivers the shock on its own
- Highly intuitive operation
- Adaptable pediatric electrodes
Description
- Lights up instantly when lid is opened
- Voice and visual guidance for ease of use
- No user action to deliver electric shock
- Integrated emergency kit (scissors, razor, mask for insufflations)
- Info button quickly informs rescuers of elapsed time / number of shocks performed
- Available in 25 languages
- 3 hours of data recording
- 210-shock battery
- Able to detect implants such as pacemakers and internal defibrillators
- Daily self-check to ensure device is ready for use
- IP55 dust and splash protection
Technical specifications
Defibrillation System
- Operating Mode:
Automated (CT0207RS: one button operation /
CT0207RF: full-automatic) - Wave Form: Biphasic, current-based
- Energy Delivery:
Adjusted to patient impedance,
Programmable (factory settings) - Delivered Energy – Adult Mode:
170J (Average for 50 Ω at low energy level)
270J (Average for 50 Ω at high energy level) - Delivered Energy – Paediatric Mode:
50J (Average for 50 Ω at low energy level)
75J (Average for 50 Ω at high energy level) - Shock Sequence:
Constant or escalating, Programmable (factory settings) - Charging Time:
Typically <10 seconds*, maximum <15 seconds*
ECG Analysis System
- Analysis Time: Typically <10 seconds*
- Derivation: II
- Asystole Threshold: <0,160 mV
- Specificity NSR / Asystole: >95**
- Sensitivity VF / pVT: >90**
- Reaction to Implanted Pacemaker:
Normal cardiac pacemaker rhythms are not detected as
shockable - Movement Detection:
Checks signal quality, gives acoustic warning at patient
movement
Operation
- Operating Elements:
i) Automatic switch-on when the cover is opened
ii) Flashing shock button (one-button operation for
CT0207RS, full-automatic operation for CT0207RF)
iii) Info-button
Info Mode:
Announcement of the elapsed time and number of shocks
since device started, when info-button is pressed - Display Elements:
Self-explanatory illuminated symbols (traffic light
principle). Device status indicator symbols (for self-test result)
Defibrillation Electrodes
- Range of Application:
Adult electrodes for patients >8 years / 25kg
Paediatric electrodes for patients 1-8 years / <25kg - Delivery Status:
Disposable, self-adhesive, single-use electrodes; ready-touse, sealed and packed with connector outside pouch - Polarization:
Not polarized (Exchange acceptable) - Active Surface Area:
200 cm2 (adult), 80 cm2 (paediatric) - Cable Length: 130 cm
- Shelf Life: 36 months from the manufacturing date (adult)
Data Management
- Event Documentation:
Automatic recording of ECG and event data in internal
memory up to 4 sessions with a total maximum duration of 2 hours 50 minutes - Data Transfer:
Bluetooth (only for authorized service providers) - Event Review and Device Programming:
Via Bluetooth connection to PC with CardiAid Monitor
Software (only for authorized service providers)
Self-Test
- Schedule:
Automatic; daily, monthly and when device is opened - Timing: Programmable (factory setting)
- Scope: Battery, electronics, software, charging
Energy Source*
- Type: Alkaline
- Capacity: Up to 210 shocks
- Monitoring Capacity: Up to 20 hours
- Stand-by Period: 42 Months
Environmental Conditions
- Operation:
i) Temperature: 0˚C to +50˚C
ii) Humidity: 0-95%
iii) Air Pressure: 572-1060h/PA - Storage and Transport:
i) Temperature: 0˚C to +50˚C
ii) Temperature: -20˚C to +70˚C (max 2 weeks, without
battery & electrodes)
ii) Humidity: 0-95%
iii) Air Pressure: 500-1060h/PA
Standards
- Device Class: IIb (93/42/EEC)
- Resuscitation Protocol: ERC, ILCOR 2020
- Norms: IEC 60601-2-4:2010
- EMC: EN 60601-1-2: 2015
- Free Drop: IEC 60601-1:2005+A1: 2012
- Protection Class: IEC 529: IP55 (protected against dust
and water jets)
Dimensions and Weight*
- Dimensions: 301 x 304 x 112mm
- Weight: 3,0 kg (including battery and electrodes)
Service and maintenance
Every 24 months, or after your CardiAid defibrillator has been in use, a CardiAid-certified technician will visit your site to service the defibrillator. 195 / year (included if renting)
- Replacing the battery
- Replacing defibrillation electrodes
- AED measurement using our diagnostic measurement equipment
- Reading data
- Software control
- If necessary, update software to latest ERC/NRR standards
- Checking for damage and faults
- After verification, the Cardiaid will be fitted with a quality control sticker.
- The interview report will be saved in your personal file.
- Helpdesk available 24/7
Order content
CardiAid fully-automatic external automated defibrillator (AED) CT0207RF
Electrode set
Battery
Carrying case
Integrated emergency kit with :
- Scissors
- Razor
- Latex gloves
- Disinfectant wipes
- Respiratory mask
Instruction manual

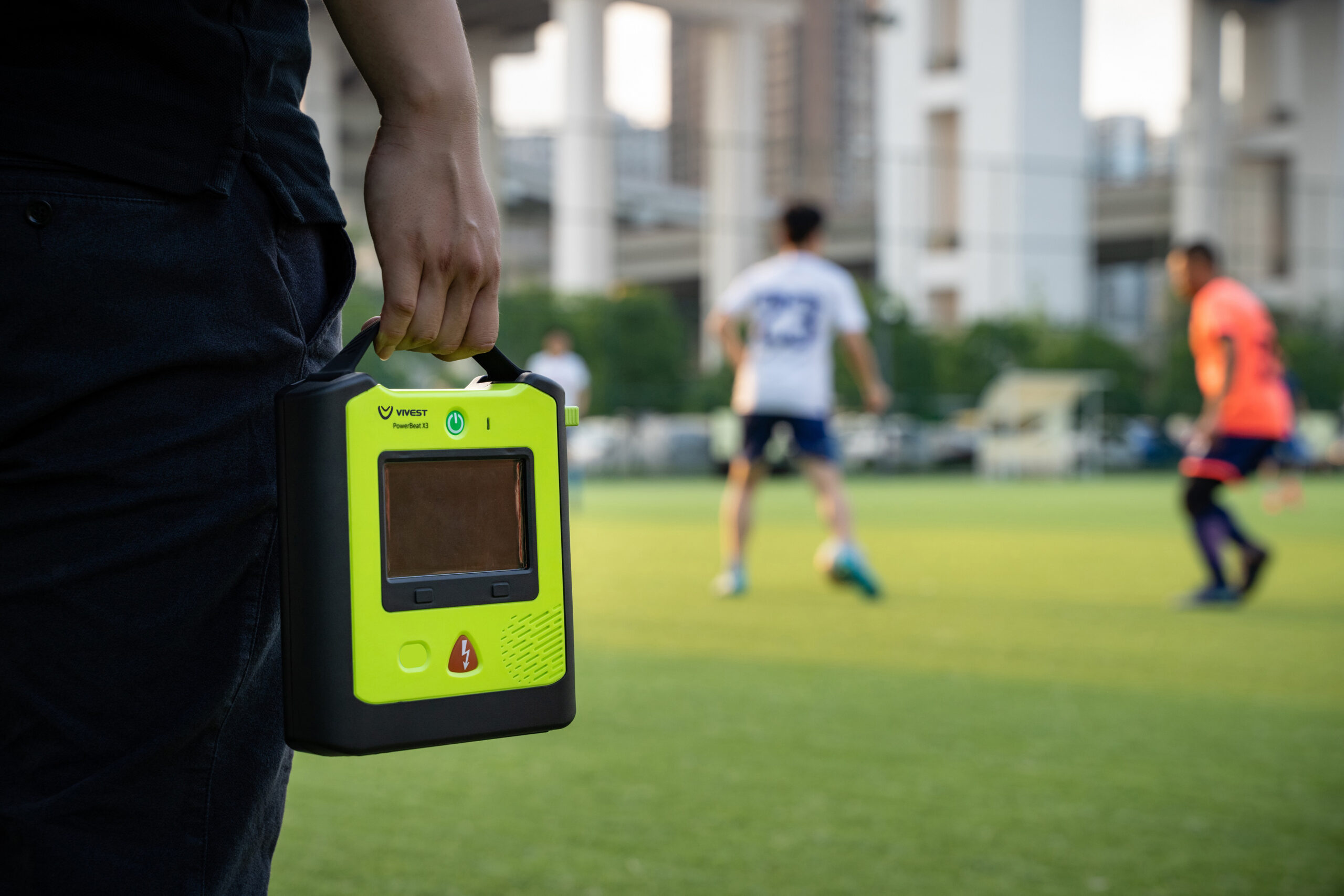

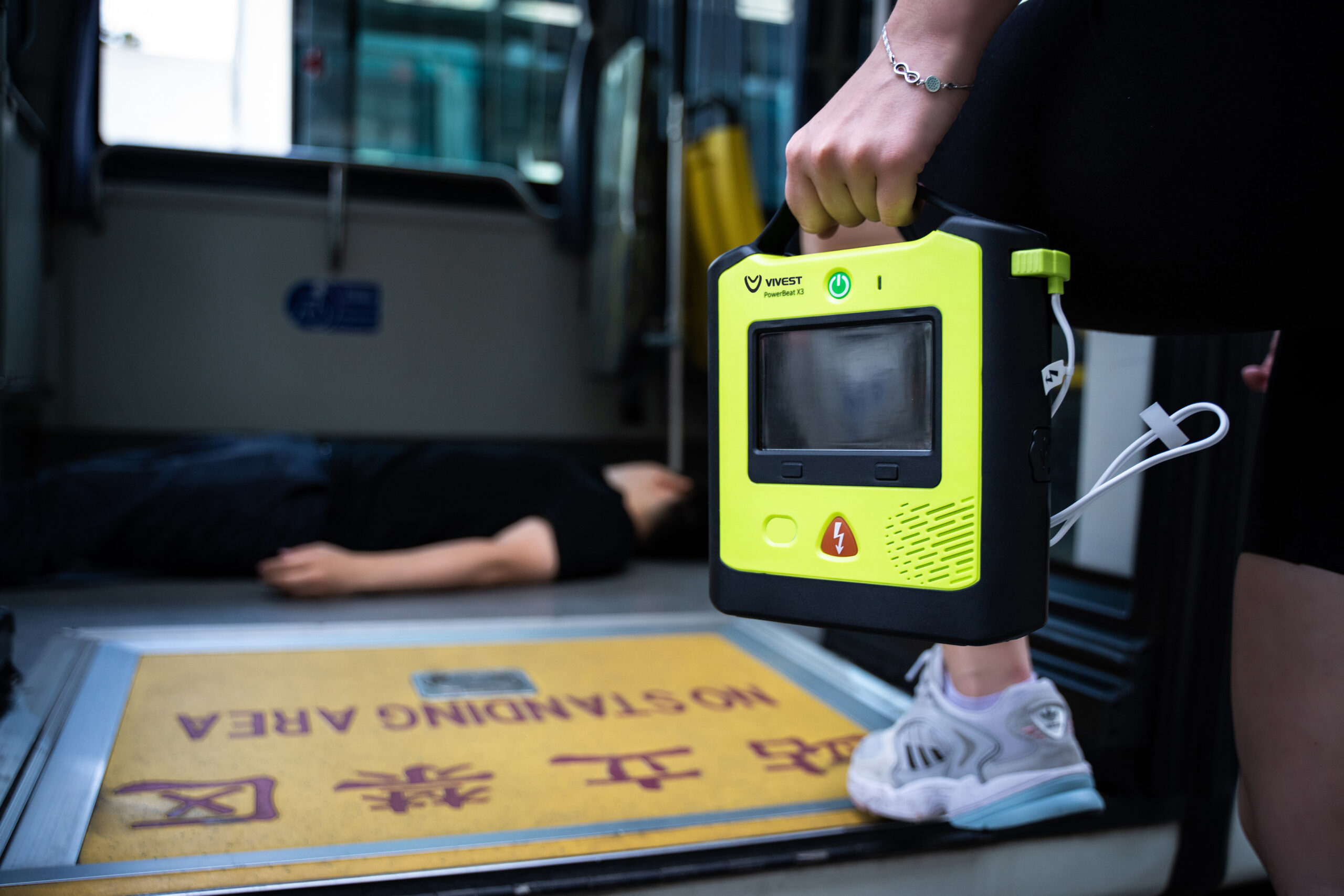

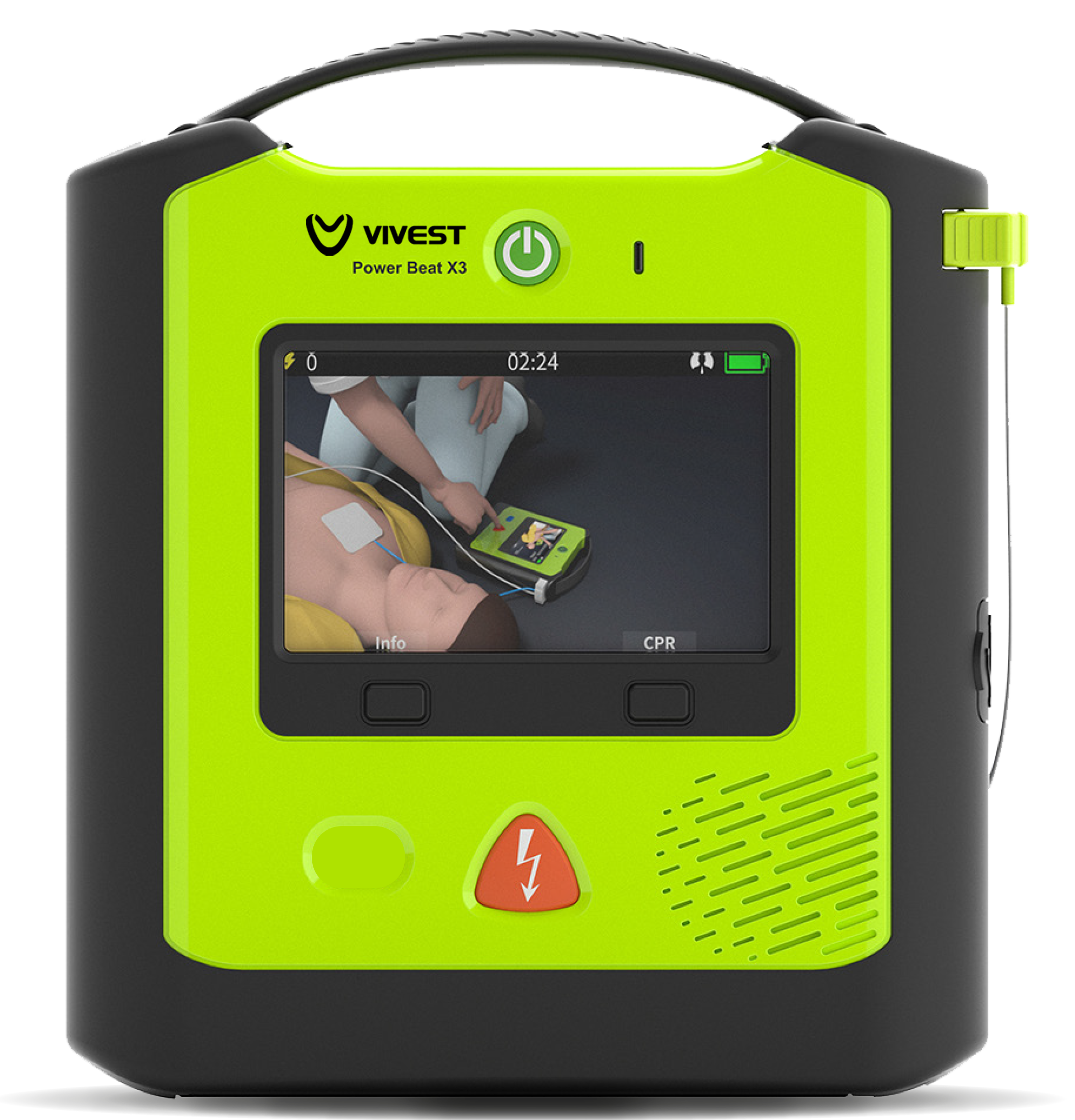

Vivest Powerbeat X3 semi-automatic defibrillator
- As easy to use as possible
- LCD display
- Choice of 2 languages during use
Description
Description of the Vivest PowerBeat X3 semi-automatic defibrillator
- Slim and lightweight: 23.2 x 20.9 x 5.9 cm for 1.5 kg
- User-friendly audio and visual instructions: the easiest to use on the market
- 5-inch (12.7 cm) LCD color display
- 4-year battery life with a capacity of over 200 shocks

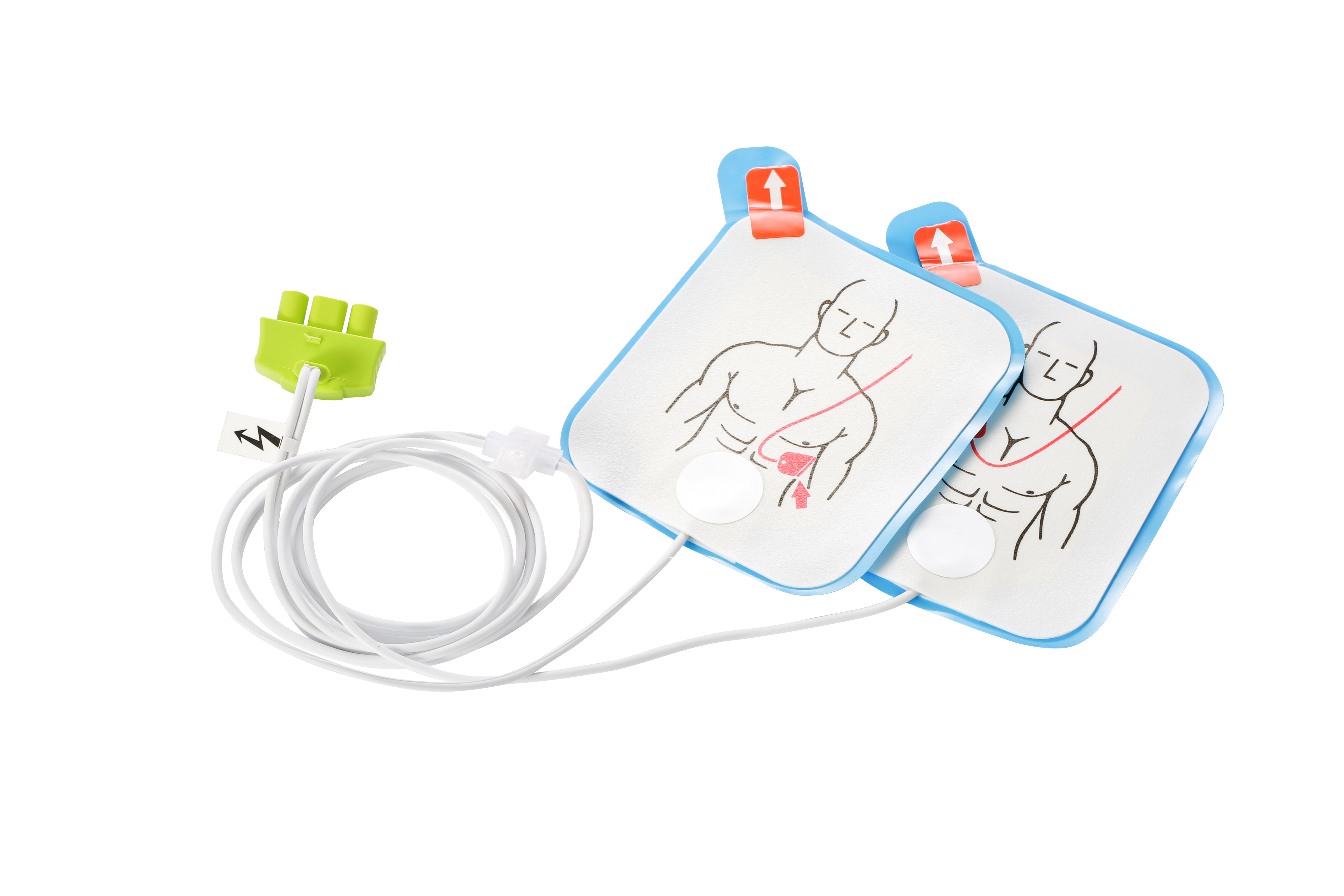

- 4-year service life for electrodes
- Features of metronome CPR
- Able to detect pacemakers and internal defibrillators
- Up to 8 hours of automatic ECG recording
- Daily self-check to ensure device is ready for use
- IP55 protection against dust and humidity
- Withstands falls from 1.5 metres
- Two languages available during use
Technical specifications
Defibrillator
- Waveform: truncated exponential biphasic (BET).
- Impedance range: 20 to 180 Ω.
- Energy level: For adults, energy emitted at 50 Ω impedance: 150 J
- CPR guidance: CPR instructions are given by metronome and hand placement indications.
- CPR protocol compliant with AHA (American Heart Association) 2020 guidelines.
- Charge/discharge time: time elapsed between the “shock recommended” message and the moment when the shock can be delivered: 7 seconds
Arrhythmia analysis
- Accuracy: complies with IEC60601-2-4 standard.
- Analysis time: typically 8 seconds
Controls
- Mode of operation: semi-automatic (the appropriate button must be pressed to deliver the electric shock).
- Language button: users can switch between a primary and a secondary language, among the various language options available.
- Certification: ISO13485, CE certification.
- Safety standard :
- IEC 60601-1:2005+A1:2012
- IEC 60601-2-4:2010+AMD1:2018
- IEC 60601-1-2:2014
- IEC 60601-1-12:2014
User interface
- Screen: the PowerBeat X3 features a 5″ color LCD screen measuring 105 x 65 mm.
- Resolution: 800 x 480 pixels.
- User instructions: the PowerBeat X3 features a color LCD display. It broadcasts video animations and sends out voice and text messages in two languages.
- Volume control: The volume can be adjusted via the application.
- Device status indicator: visual and audible indicators monitor the status of the device, electrodes and battery. A flashing green light indicates normal operation. A flashing red light indicates that the unit is faulty.
Environmental parameters
- Operating/standby temperature: -10°C ~ +50°C.
- Minimum operating temperature for one hour (extreme cold) : -20 °C.
- Short-term storage/transport temperature: -40°C to +70°C, for one week, without battery and electrodes installed.
- Atmospheric pressure: 59.4 K Pa to 106 K Pa.
- Relative humidity: 5% to 95% (non-condensing).
- Protection: IP55 against water and dust
Physical characteristics (including handle)
- Height: 232 mm.
- Width: 209 mm.
- Thickness: 59 mm.
- Weight: 1.5 kg (including battery and electrodes).
- Tolerable drop/impact damage: can withstand damage caused by a free fall from a height of 1.5 meters onto hard surfaces.
Accessories (Battery)
- Type: Lithium manganese dioxide (Li/MnO2) battery (non-rechargeable), 12 V/3000 mAh.
- Capacity: at 20°C ±2°C the new battery can be discharged 200 ±10 times at 150 J.
- Operating time (standby): 4 years
- Low battery status: a battery that indicates it is low can still be used ≥10 times at 150 J

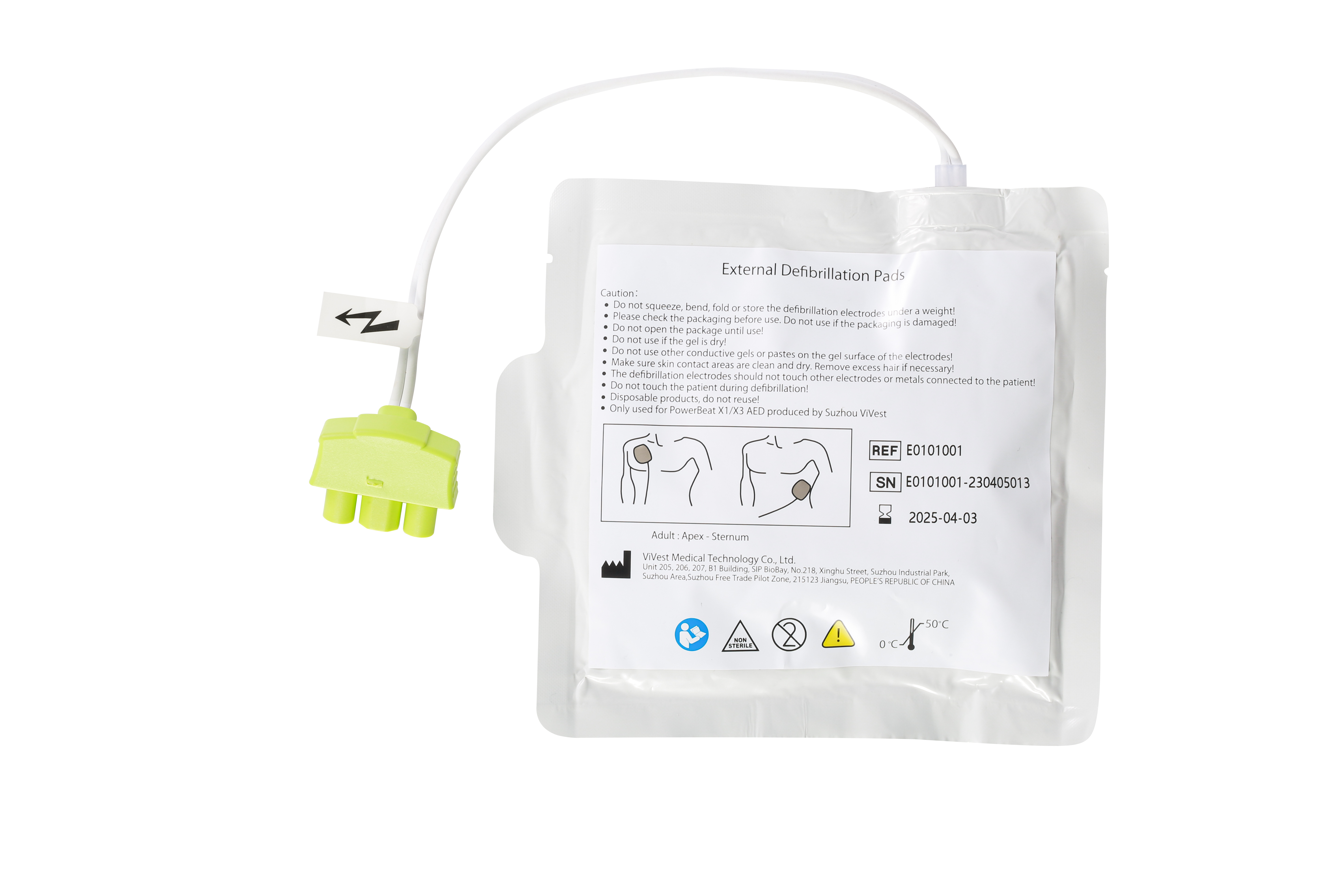

Accessories (electrodes)
- Electrodes: suitable for adult patients
- Shelf life/operating life (standby): 4 years from date of manufacture.
- Cable length: 110 cm
- Storage space: electrodes can be stored in the space on the back of the unit.
Data storage
- Memory type: internal digital memory.
- Storage of electrocardiograms/events: at least 8 hours of recording of electrocardiograms and events/incidents.
- Self-check data storage: up to 10 years.
Communications
- Communications: USB interface.
About the device
- Production date: refer to the label on the underside of the device.
- 8-year warranty.
Service and maintenance
You can replace the consumables yourself:
- Battery replacement every 4 years (199.-)
- Replacement of defibrillation electrodes (125.-)
Or you can opt for a service contract with MSTRC Medical’s technical team every 24 months, or after using your Vivest defibrillator.
A certified technician then goes on site to service the defibrillator. 145 / year (included if renting)
- Replace battery if necessary
- Replacement of defibrillation electrodes if necessary
- AED measurement using our diagnostic measurement equipment
- Reading data
- Software control
- If necessary, update software to latest ERC/NRR standards
- Checking for damage and faults
- After verification, the Cardiaid will be fitted with a quality control sticker.
- The interview report will be saved in your personal file.
- Helpdesk available 24/7
Order content
Vivest PowerBeat X3 semi-automatic external automated defibrillator (AED) VPBX3RS
Electrode set
Battery
Instruction manual
Training defibrillators
Specially designed for training purposes, our training defibrillators are identical in every respect to real defibrillators, guaranteeing perfect knowledge of how to use the defibrillator.
CardiAid training defibrillator
Training defibrillator with the same design and features as real CardiAid defibrillators
Description
The CardiAid Trainer is an automated external defibrillator training unit.
Its design and functions are identical to those of our CardiAid CT0207RS and CT0207RF defibrillators.
The aim of the training unit is to familiarize trainees with the use of CardiAid AED in emergency situations.
As a result, the CardiAid Trainer can simulate all possible scenarios that a user may encounter when using a CardiAid AED.
By using the CardiAid Trainer, the user will gain confidence and know how to use the CardiAid AED in every situation.
Both CardiAid defibrillators are easy to use, guiding the user with clear verbal and visual instructions.
However, when faced with a case of sudden cardiac arrest, the situation is stressful, hectic and perhaps even chaotic. Potential users of the CardiAid AED are therefore advised to take the following training courses and train regularly with the CardiAid Trainer.
The drive unit can be set to semi-automatic or fully automatic mode to simulate both CardiAid CT0207RS and CT0207RF.
CardiAid Trainer is controlled by the instructor using a remote control. It can instantly simulate different scenarios, depending on the needs of each user and/or the subject of the training session.
The CardiAid Trainer comes with rechargeable batteries and is suitable not only for AED training companies, but also for CardiAid defibrillator customers wishing to organize periodic training sessions for potential users.
Order content
- CardiAid Trainer
- Remote control
- Training electrode set
- Emergency kit (scissors, razor, mask, disinfectant wipe, gloves)
- Charger for rechargeable batteries
- Carrying case
- Instruction manual
CHF 615.00
Vivest training defibrillator
Training defibrillator with the same design and functions as the real Vivest defibrillator
Description
The Vivest Trainer is an automated external defibrillator training unit.
Its design and functions are identical to those of the Vivest PowerBeat X3 defibrillator.
The aim of the training unit is to familiarize trainees with the use of the Vivest PowerBeat X3 in emergency situations.
As a result, the Vivest Trainer can simulate all possible scenarios that a user may encounter when using a Vivest AED.
By using the Vivest Trainer, the user will gain confidence and know how to use the Vivest AED in every situation.
The Vivest PowerBeat X3 defibrillator is easy to use, guiding the user with clear verbal and visual instructions via the LCD screen.
However, when faced with a case of sudden cardiac arrest, the situation is stressful, hectic and perhaps even chaotic. Potential users of the Vivest defibrillator are therefore advised to follow training courses and train regularly with the Vivest Trainer.
The Vivest Trainer is controlled by the instructor using a remote control. It can instantly simulate different scenarios, depending on the needs of each user and/or the subject of the training session.
The Vivest Trainer is suitable not only for AED training companies, but also for CardiAid defibrillator customers wishing to organize periodic training sessions for potential users.
Order content
- Trainer Vivest
- Remote control
- Training electrode set
- Carrying case
- Instruction manual
CHF 595.00
Accessories
CardiAid wallmount with information panel
To make your defibrillator visible on the wall
CHF 135.00
RotAid interior protection box with alarm
For wall mounting. Suitable for all defibrillators
CHF 379.00
RotAid outdoor protection box with heater, alarm and LEDs
For outdoor wall mounting. Suitable for all defibrillators
CHF 669.00
Totem RotAid with heat box, alarm, LED and sun protection
For floor mounting. Suitable for all defibrillators
CHF 1648.-
Connectivity
Employers can save their staff time and energy with our product monitoring. CardiLink software displays the status of your devices in a dashboard in real time and analyzes your data for the long-term monitoring and quality reports. Alarms and any occurring issues will be reported to you before the product will be used with a patient. CardiLink can also provide Data Analytics of your product for clinical studies.
Connected AED safety solutions
CardiLink is a system devised for organisations with multiple CardiAid AED units allowing each device to be remotely monitored.
What are the benefits of using CardiLink remote monitoring?
- Daily updates on the readiness of you CardiAid AED units
- SMS alerts when any of the devices are in motion
- Connects to as many CardiAid AED’s as required
- Expert advice on CardiAid AED safe zones and device placement
- Reporting to your own IT system via AP integration
CardiLink operation
Always ready
Checks and documents AED statuts
Automated QMS compliance
Certified and online documentation
Emergency notifications
Sends notification when moved and opened
Uptime guarantee
Via pro-active servicing and SLA
GPS geofence
Theft movement detection tracking
Fleet management
Managed solutions, API integration
CHF 450.00
then
CHF 29.– / month
