Emergency evacuation chairs
In the event of a disaster, everyone in the building must be evacuated as quickly and safely as possible.
Escape Mobility Company provides high-quality evacuation solutions with its Escape-Chair® range.

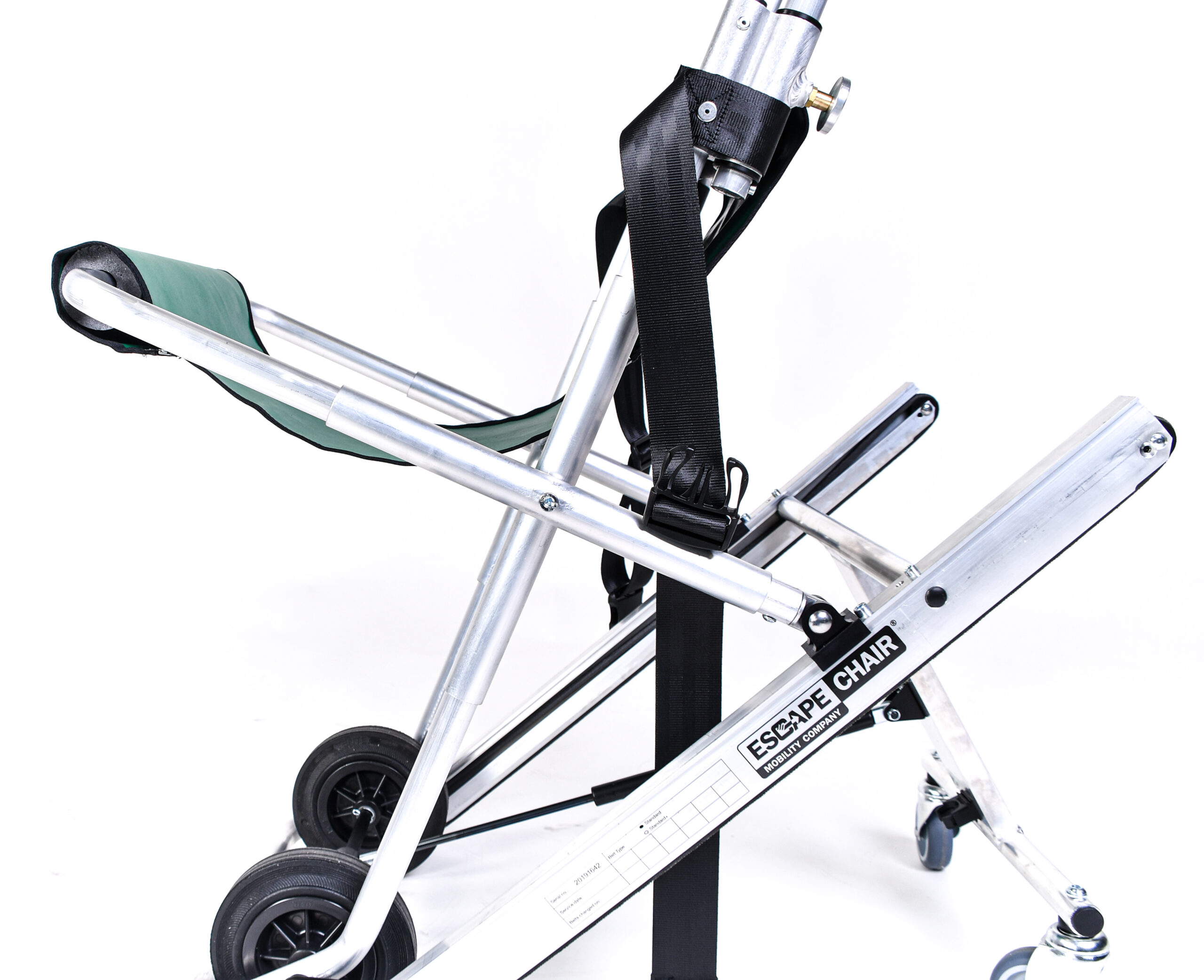

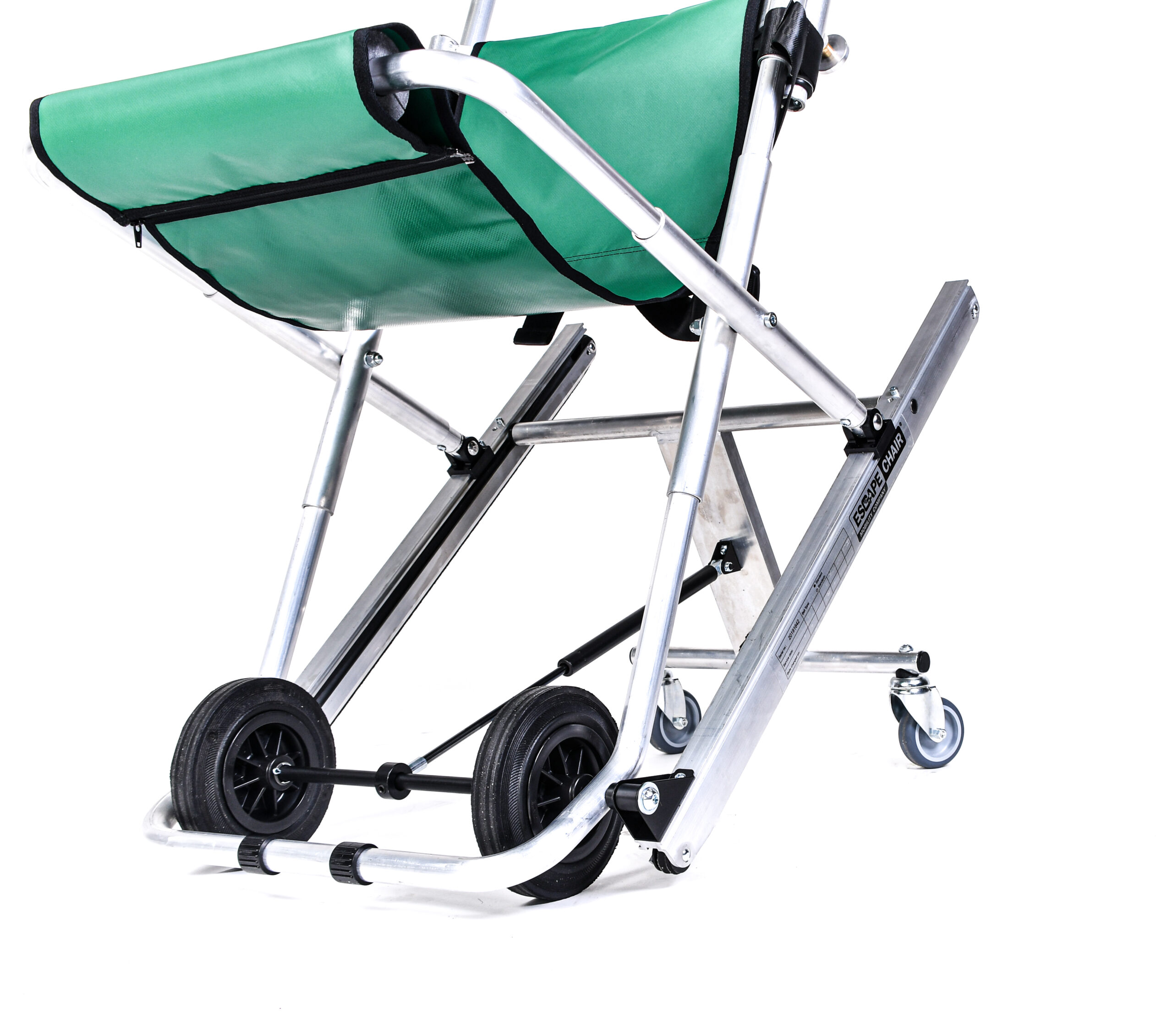

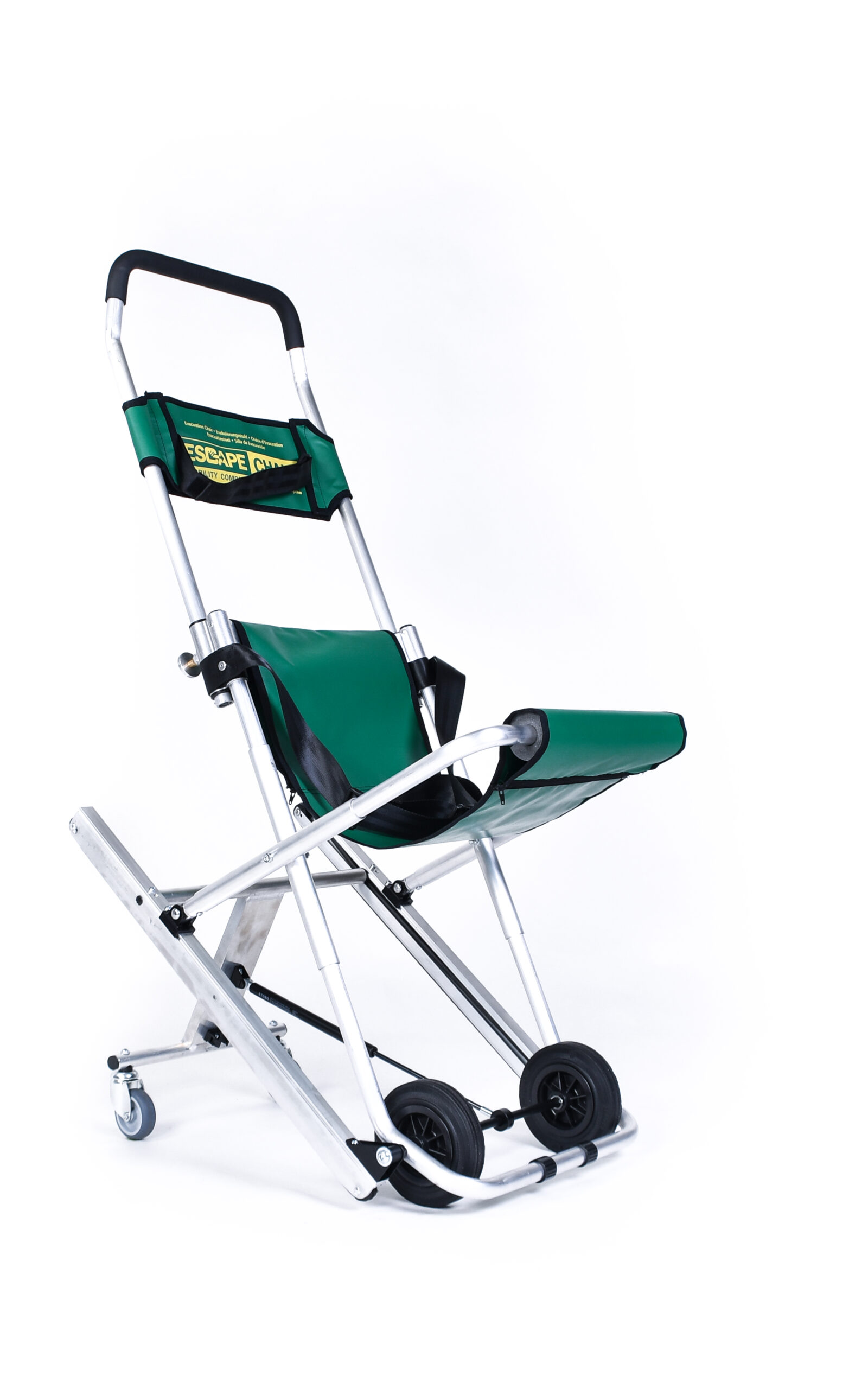

Escape-Chair® ST-B
Emergency evacuation chair – standard model
Light weight basic evacuation chair with clear metallic coated aluminium frame.
This model has basic features only, but can also be fitted with an ‘Extra package’ or an ‘Extra package with footrest’.
Usage
The Escape-Chair® ST-B is mainly used in (public) buildings for general evacuation.
Demonstration and advice
No two buildings are the same and no two situations are the same. Our expert product specialists will provide advice on evacuation concepts for your Organisation. We share the same passion in helping you to make the best choice, when it comes to investing in the right evacuation equipment. So before you order, why not contact us for some expert help!
Specifications
- Material (frame): Aluminium
- Light weight, easy to operate
- Ready to use within a few seconds

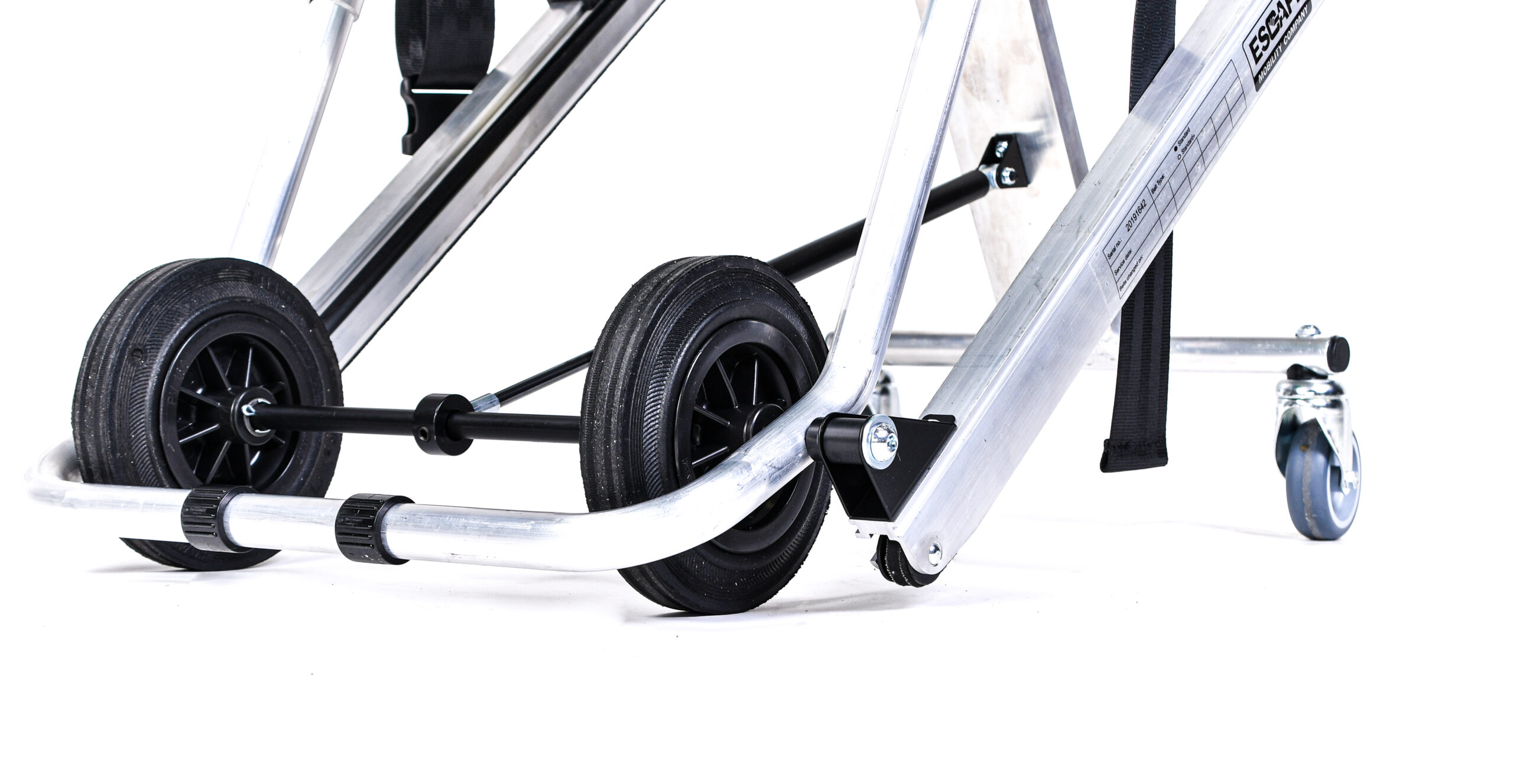

- Unfolding stand with wide wheel base for horizontal transport
- Ergonomic single backrest

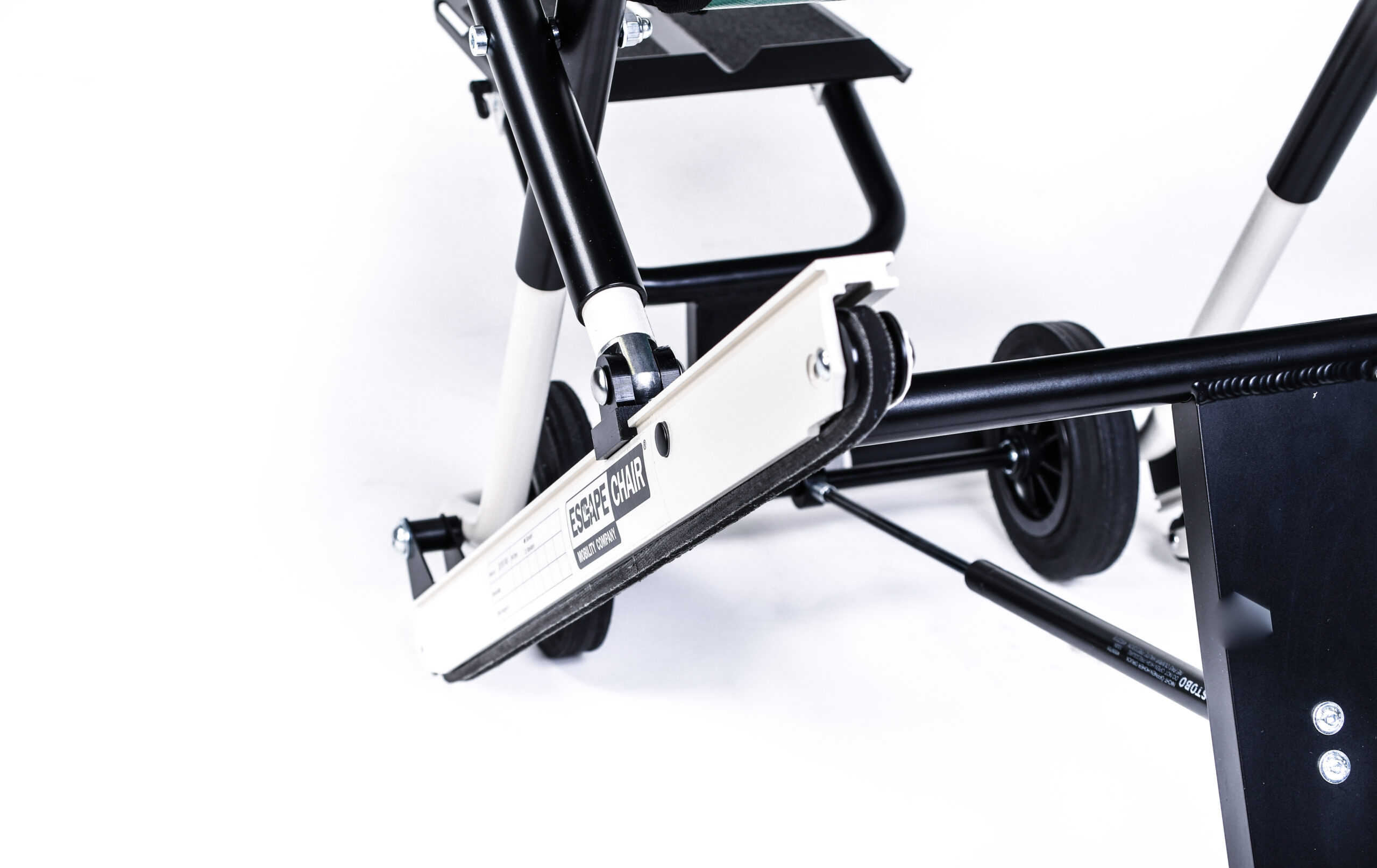

- Gliding belt system in safe closed exchangable cassette
- Including flame retardant dust cover
- Anti-slip on operating handle and lower bracket
- Maximum carrying capacity: 185 kg
- Maximum angle of stairs: 45 ̊
- Operating handle: 1 position

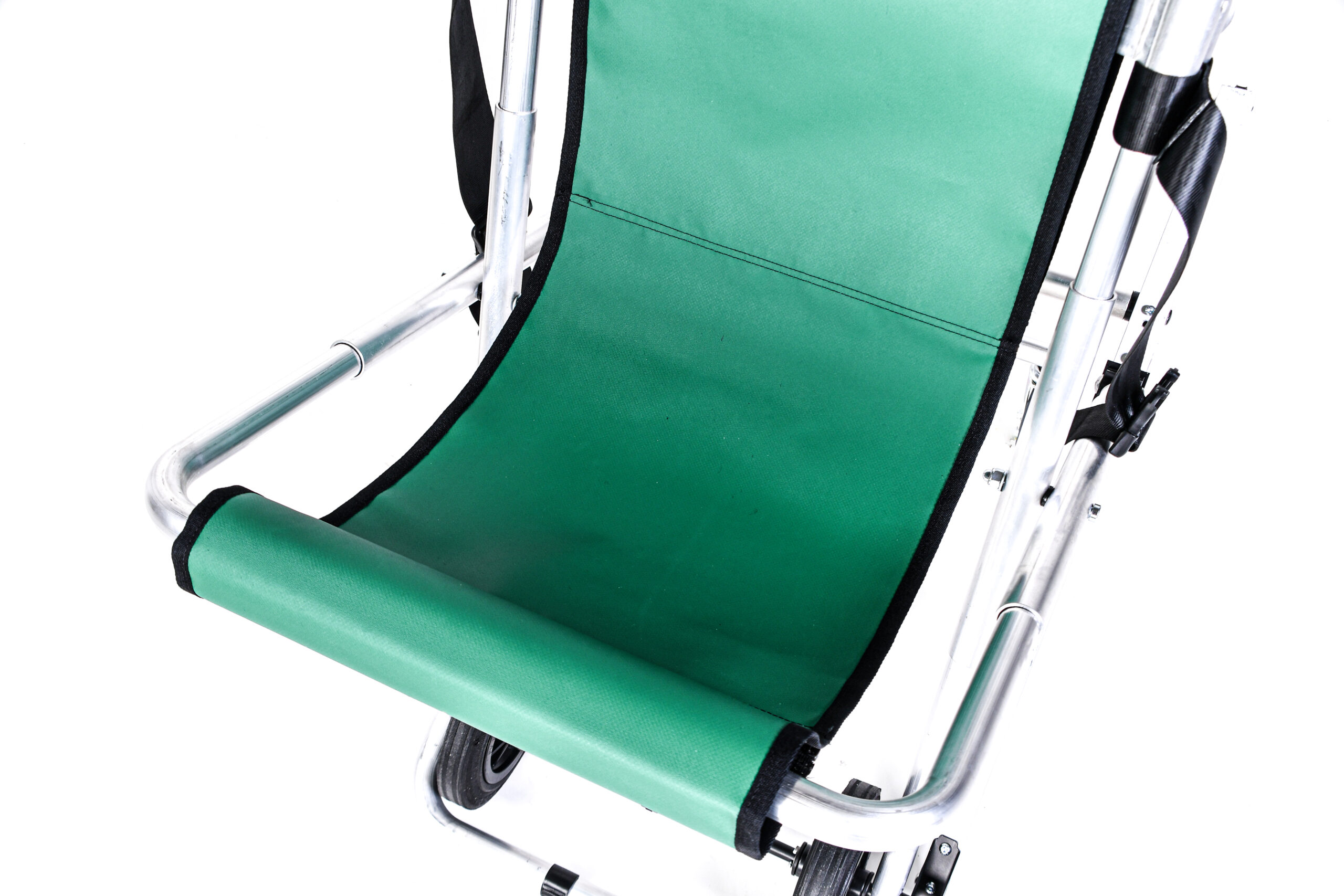

- Standard seat
- Head rest including immobilisation band
- Optional: Foot rest (Note: this serves as support and cannot carry the full weight of the evacuee)
- Optional: castors with brake (for stairs with angle 35° or less, the brake must be activated before evacuating down the stairs)
- Weight: 11 kg

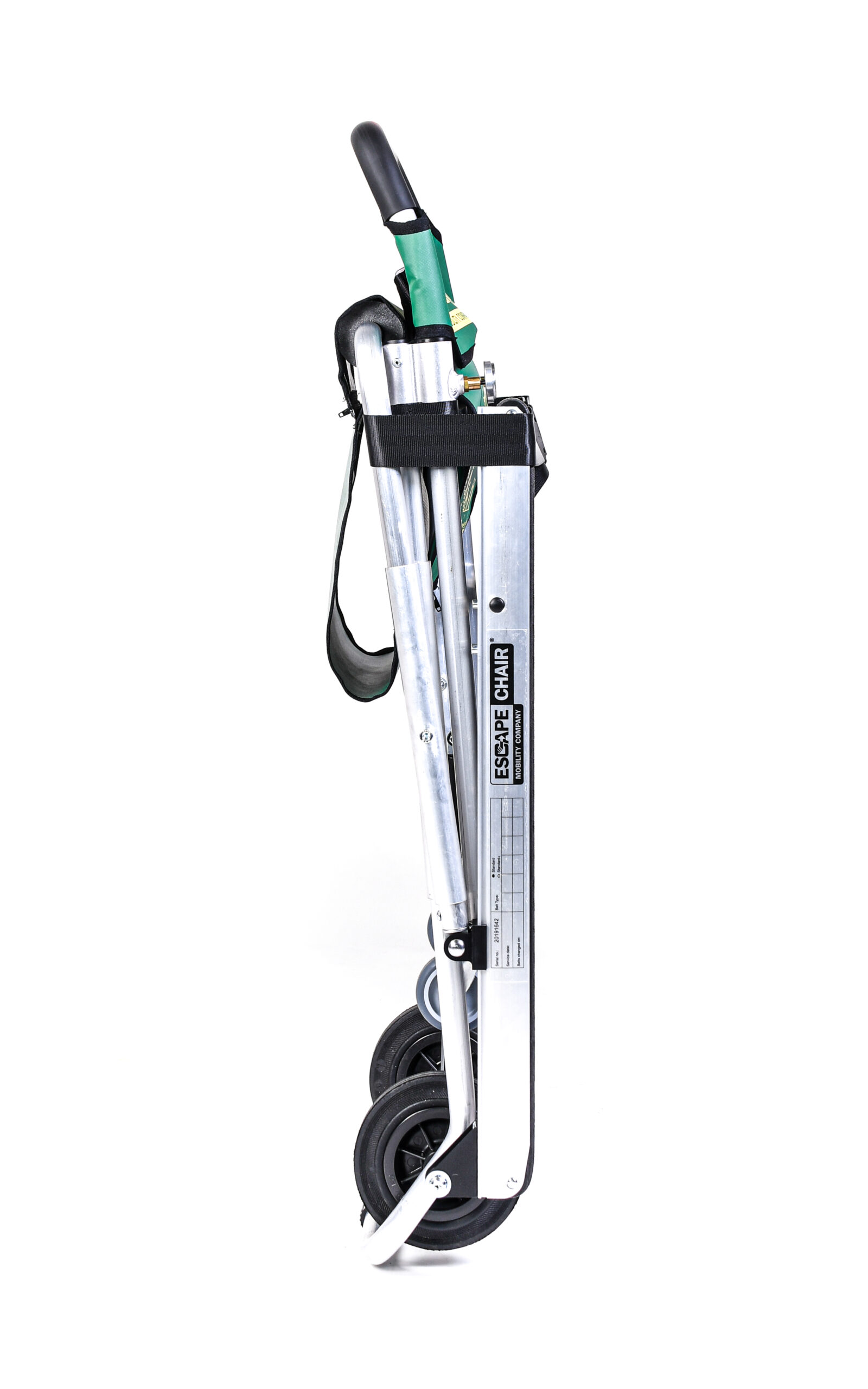

- Dimensions folded up (H x W x D): 105 x 51 x 18 cm
- Warranty: 6 years (not including general wear and tear)
- 5-language manual
- Set wall hooks
- Identity sign Escape-Chair®
Why choose an Escape Chair from Escape Mobility Company?
- Evacuation specialist since 1987
- Complete range of evacuation solutions and electrical aids
- Adapts to all emergency evacuation plans
- Evacuation aids of the highest quality available on the market
- Designed in the Netherlands and Germany
- CE certified to MDR EU 2017/745
- TÜV NORD and ISO certified
- Innovative character
- Excellent reputation worldwide

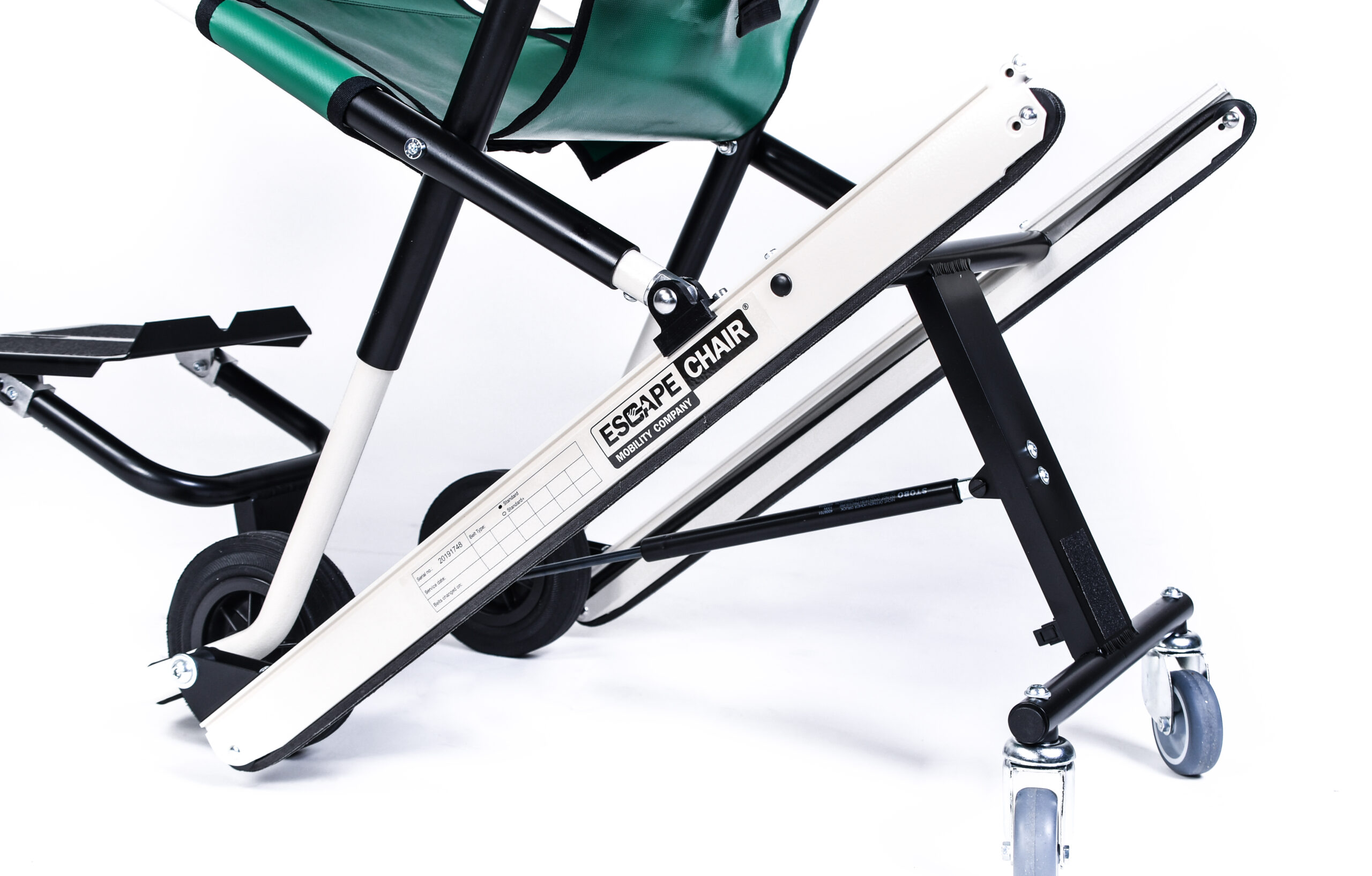

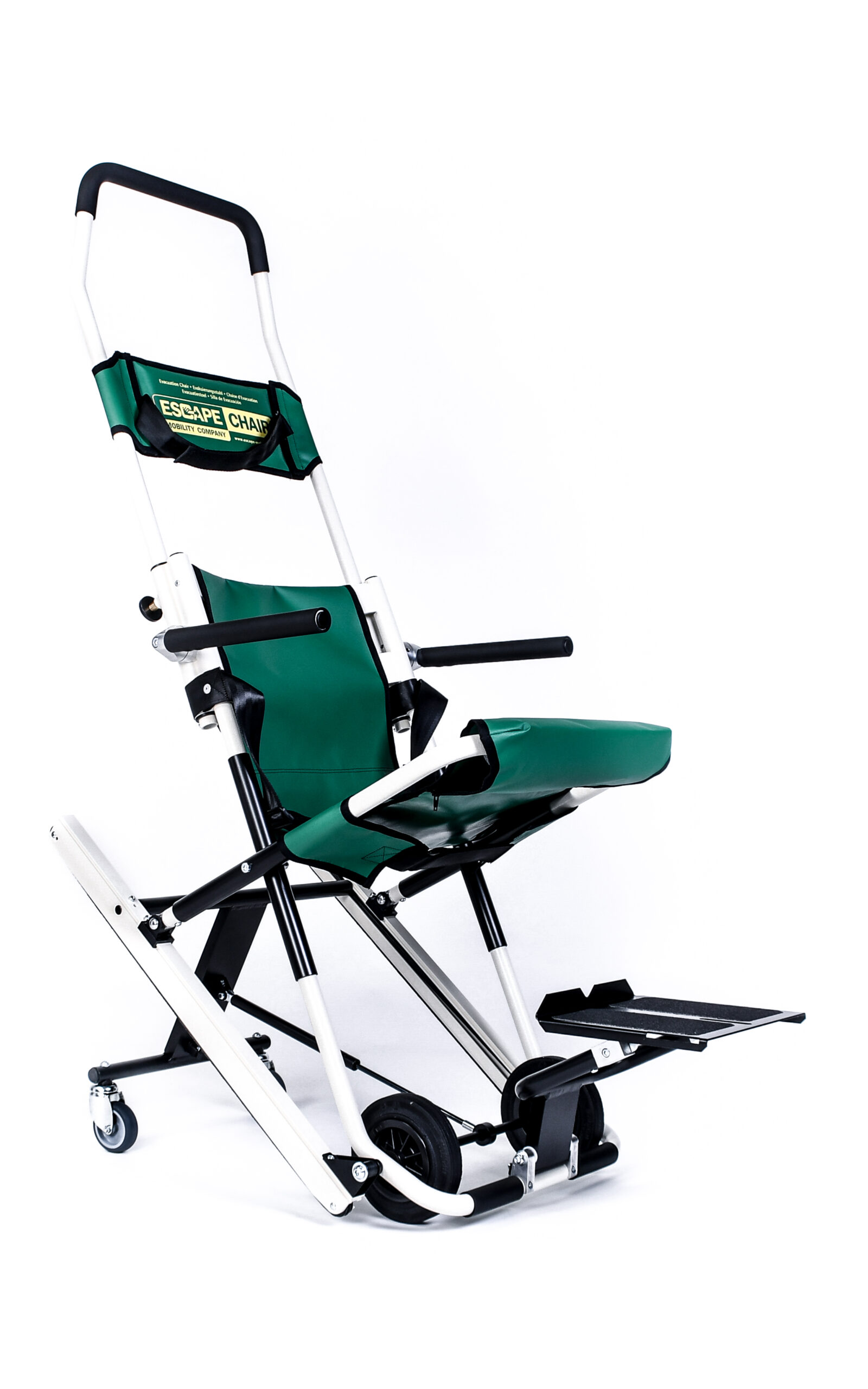

Escape-Chair® CF
Emergency evacuation chair – Comfort model
This model is designed especially for people who have a higher risk mobility issue and for wheelchair users. The armrests give the occupant a feeling of safety during the evacuation and can be used to help with transfer from a wheelchair and into the Escape-Chair®.
The footrest gives greater support and improves the blood circulation. For example when the evacuee has to remain in the Escape-Chair® for a considerable time (in the refuge area or at the assembly point). We highly recommend a footrest for rescue from building with 5 floors or more.

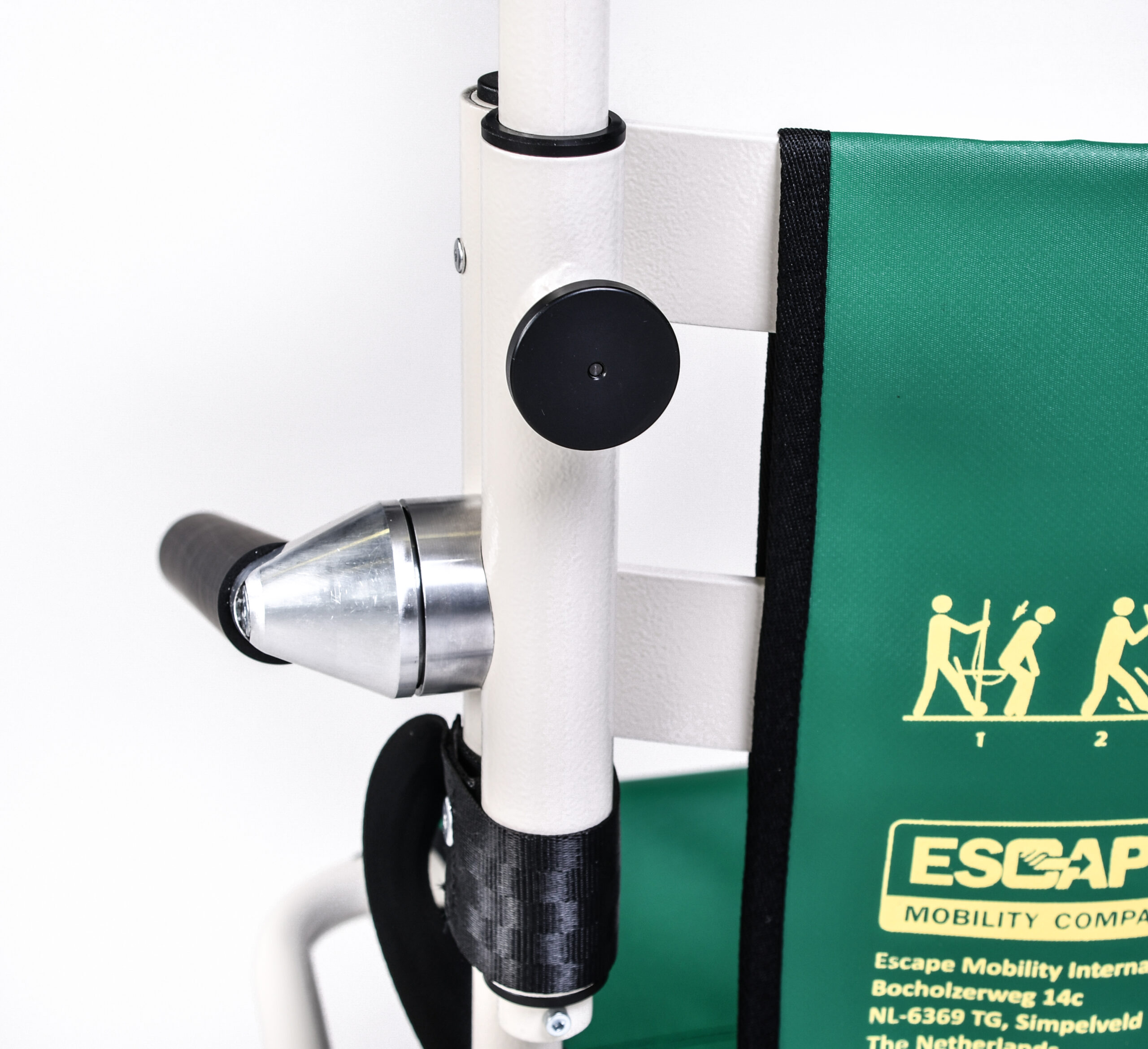

The double ergonomic back support and anti-slide seating brings more comfort and stability for the evacuee. This model has a 2-height adjustable operating handle, which enables operation of this Escape-Chair® for people varying in height.
Usage
The Escape-Chair® CF is the most suitable solution for more personal evacuation of people with mobility issues and/or wheelchair users because of its additional features.
Demonstration and advice
No two buildings are the same and no two situations are the same. Our expert product specialists will provide advice on evacuation concepts for your Organisation. We share the same passion in helping you to make the best choice, when it comes to investing in the right evacuation equipment. So before you order, why not contact us for some expert help!
Specifications
- Material (frame): Enameled aluminum
- Light weight, easy to operate
- Ready for use within a few seconds
- Unfolding stand with wide wheel base for horizontal transport
- Double ergonomic backrest
- Gliding belt system in safe closed exchangeable cassette
- Including fire retardant dust cover
- Anti-slip on operating handle and lower bracket
- Maximum carrying capacity: 185 kg
- Maximum angle of stairs: 45 ̊
- 2 height adjustable operating handle
- Comfort seat
- Footrest (Note: this serves as support and cannot carry the full weight of the evacuee)
- Armrests
- Head rest including immobilisation band

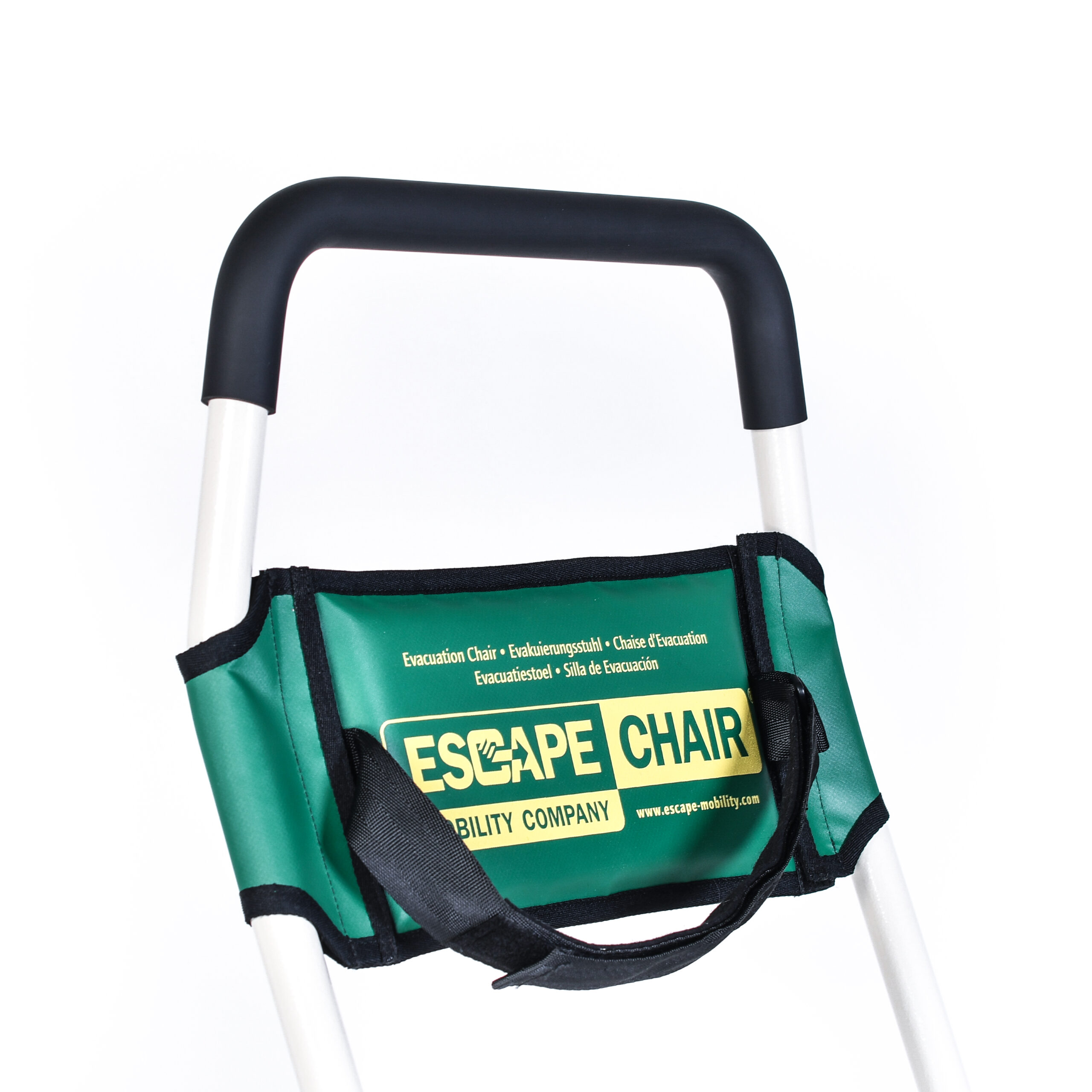

- Padded (upholstered) headrest
- Weight: ± 15 kg

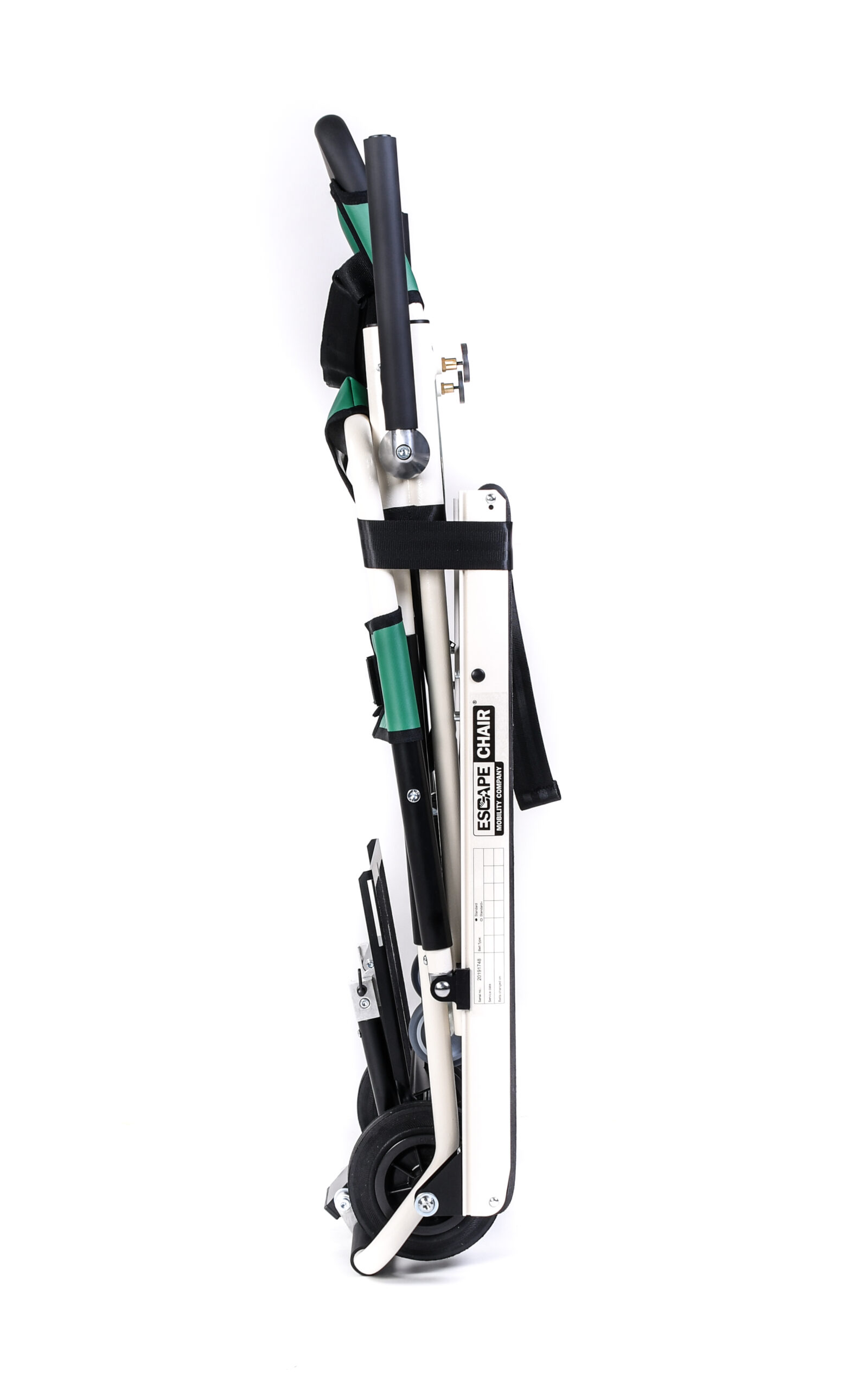

- Dimensions folded up (H x W x D): 116 x 57 x 21 cm
- Warranty: 6 years (not including general wear and tear)
- 5-language manual
- Set wall hooks
- Identity sign Escape-Chair®
- Optional: castors with brake (for stairs with angle 35° or less, the brake must be activated before evacuating down the stairs)

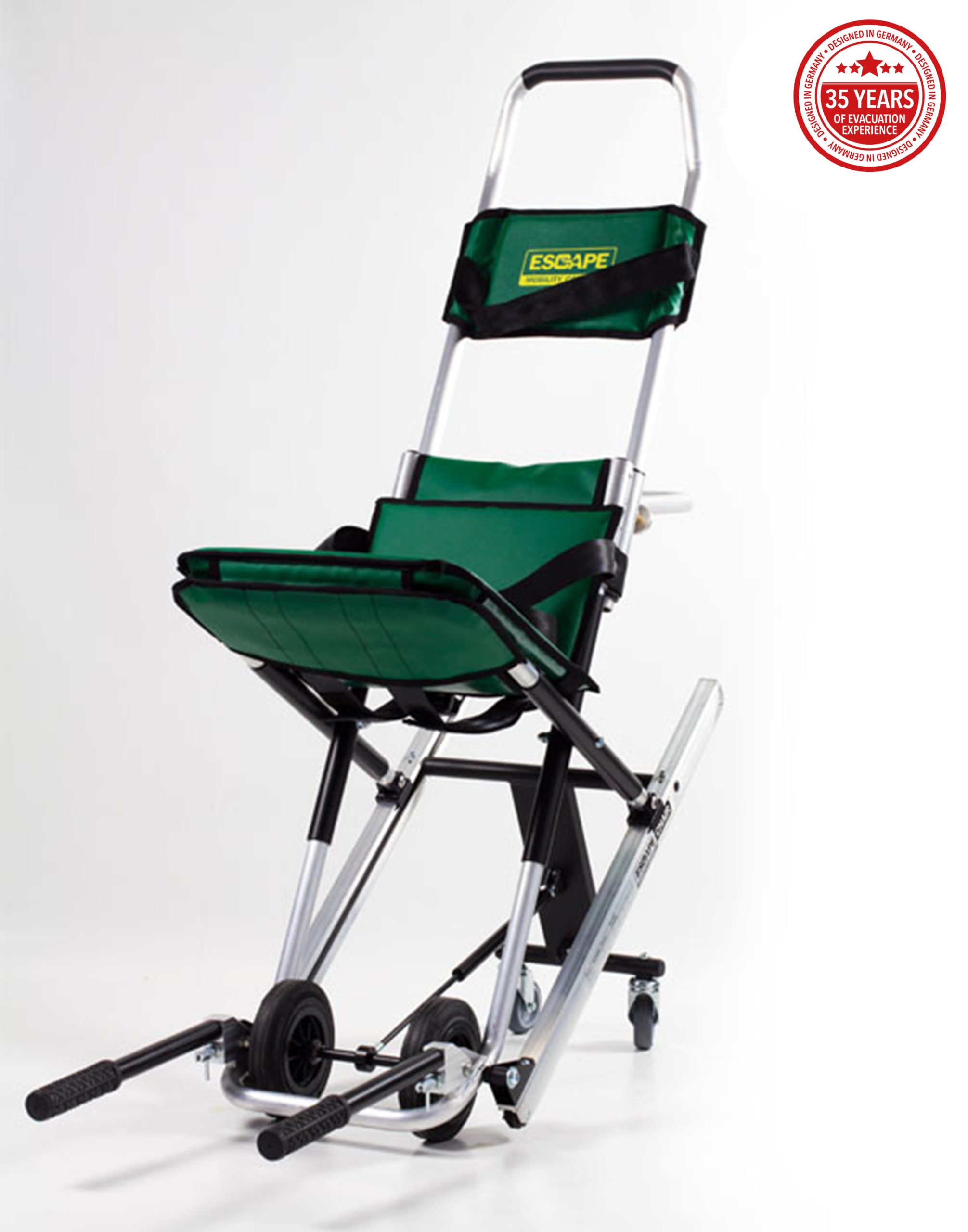

Escape-Carry Chair® XS
Emergency evacuation chair – narrow model

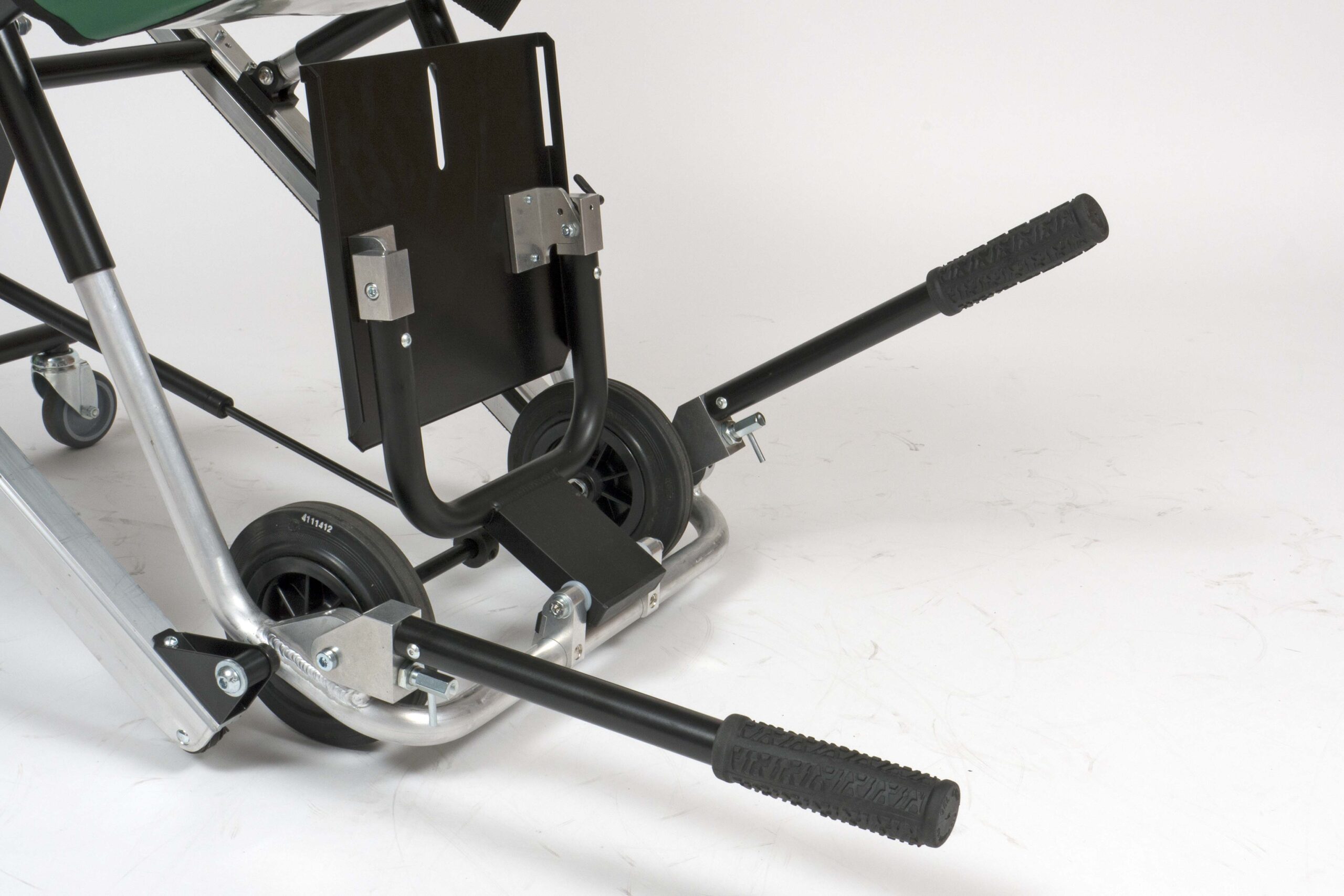

The XS model is used when the other models are too wide for the available space. The Escape-Carry Chair® XS is also suitable for evacuating an evacuee up the stairs by means of the carrying bracket and carrying handles. For instance in buildings with narrow corridors and/or staircases, or airplanes.
Usage
The Escape-Carry Chair® XS is ideal for narrow staircases or corridors like airplanes & airports or old buildings.
Demonstration and advice
No two buildings are the same and no two situations are the same. Our expert product specialists will provide advice on evacuation concepts for your Organisation. We share the same passion in helping you to make the best choice, when it comes to investing in the right evacuation equipment. So before you order, why not contact us for some expert help!
Specifications
- Material (frame): Aluminium
- Light weight, easy to operate
- Ready for use within a few seconds
- Unfolding stand with wide wheel base for horizontal transport
- Single ergonomic backrest
- Including heat and flame retardant dust cover
- Gliding belt system in safe closed exchangable cassette
- Able to be used upwards on staircase:
- Maximum carrying capacity: 185 kg
- Maximum angle of stairs: 45 ̊
- Operating handle: 1 position
- Padded seat

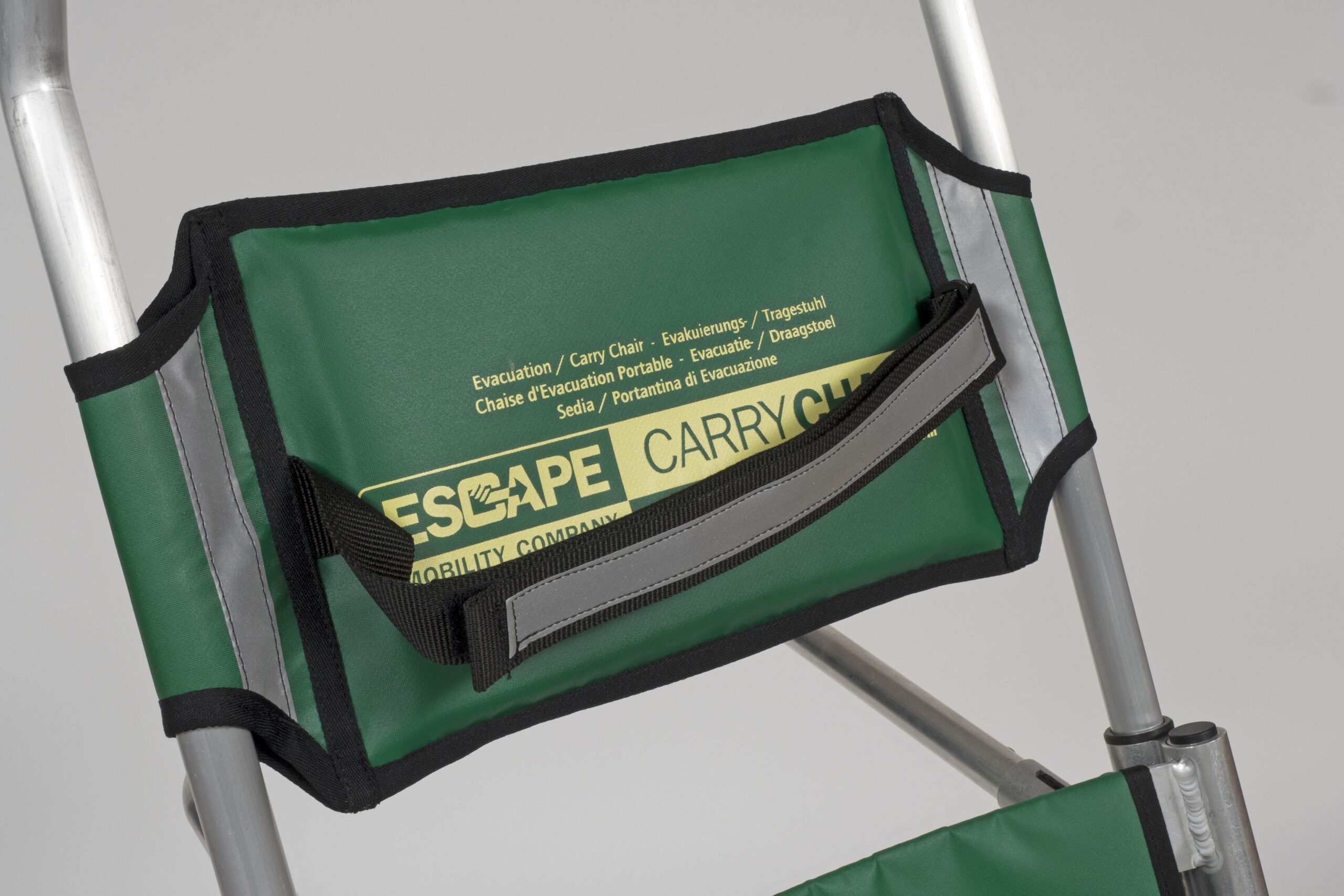

- Padded head rest including immobilisation band
- Optional: castors with brake (for stairs with angle 35° or less, the brake must be activated before evacuating down the stairs)
- Weight: ±15 kg
- Dimensions folded up (H x W x D): 105 x 40 x 27 cm
- Warranty: 3 years (not including general wear and tear)
- 5-language manual
- Set wall hooks
- Identity sign Escape-Chair®
- TÜV certified
- CE certified

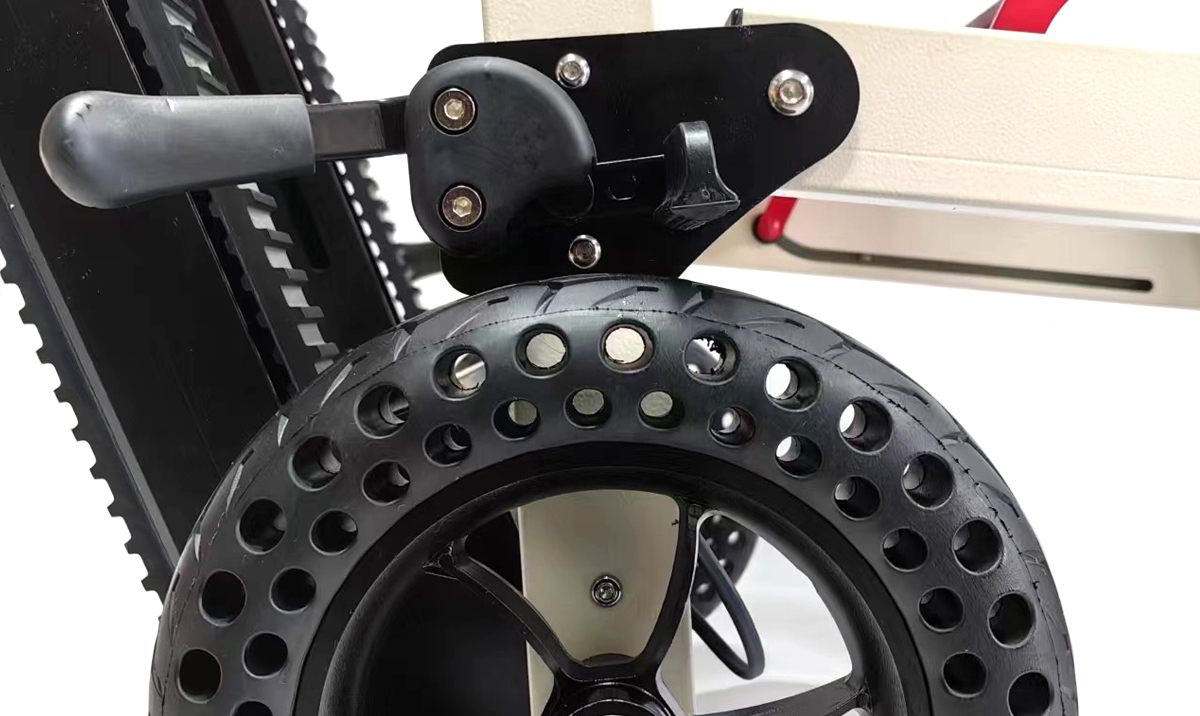

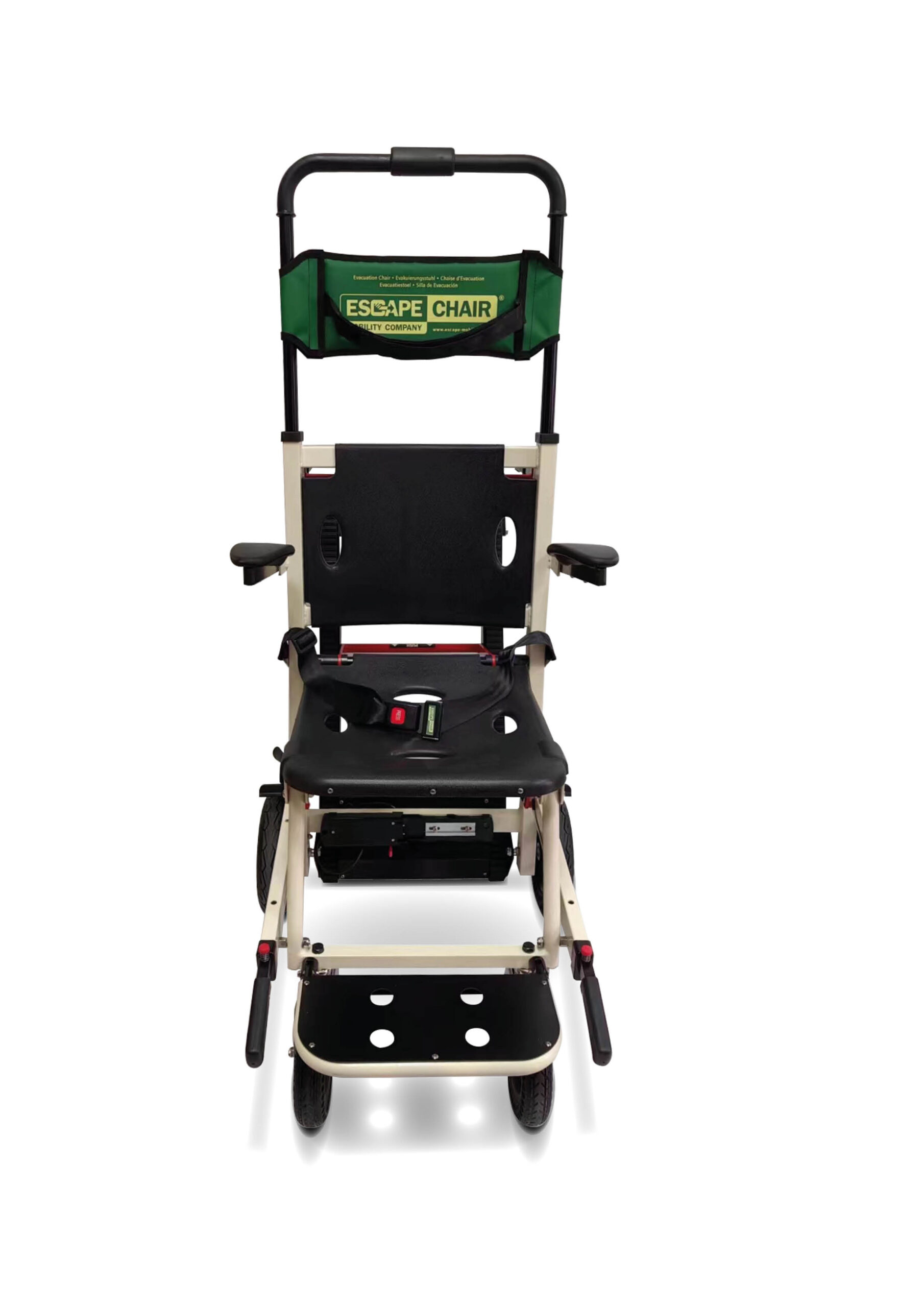

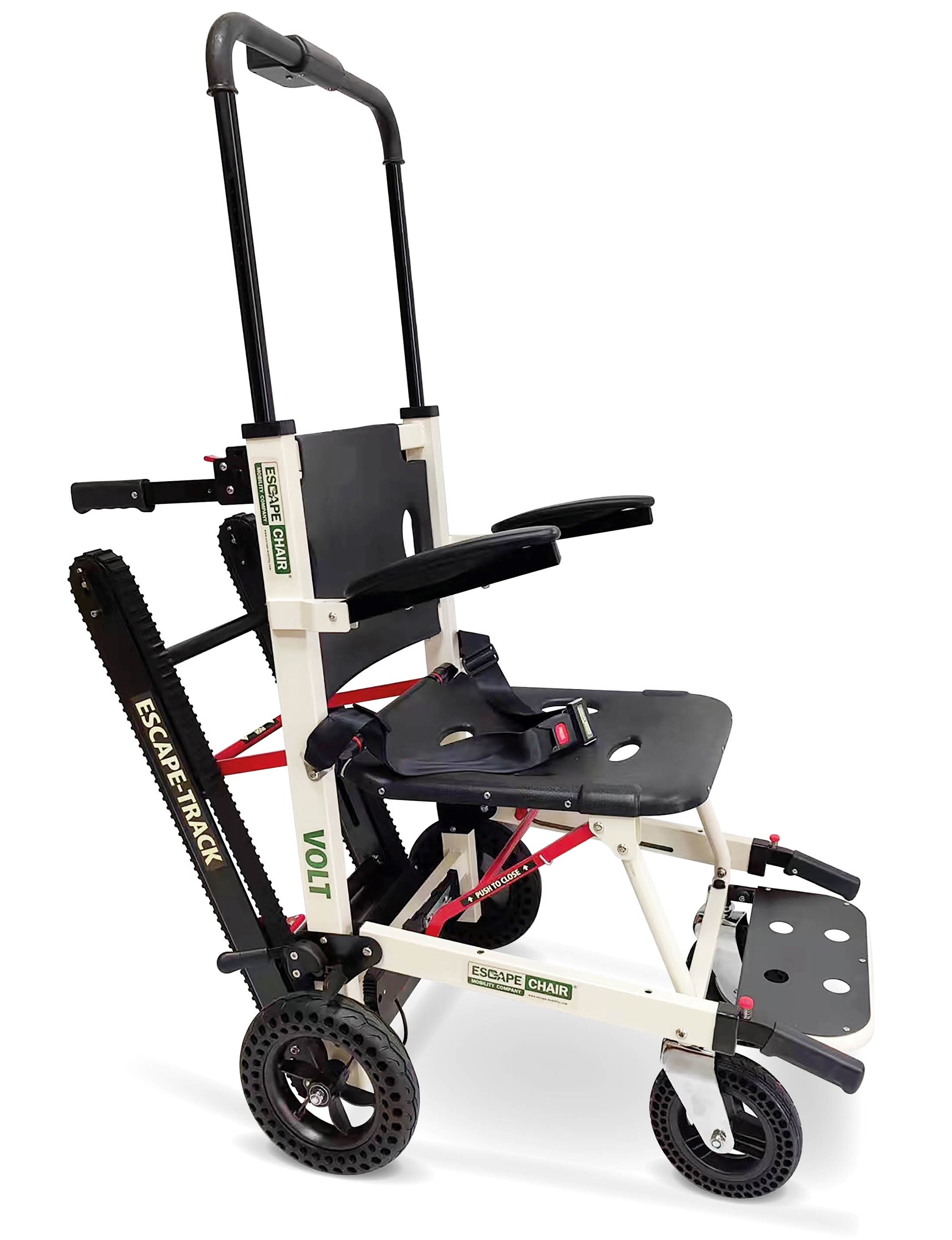

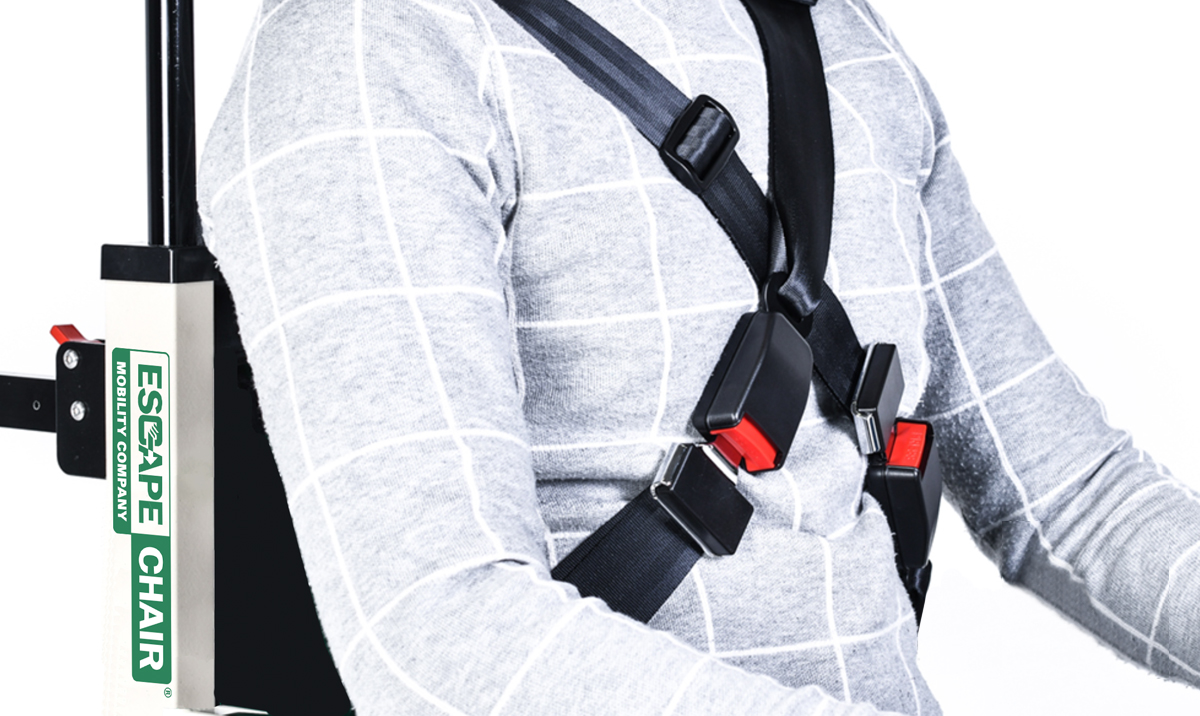

Escape-Chair® Volt
Emergency evacuation chair – motorized model
This model has been especially designed to provide you with powered battery support for evacuating or rescuing people both down or up the stairs. Up to 254kg!

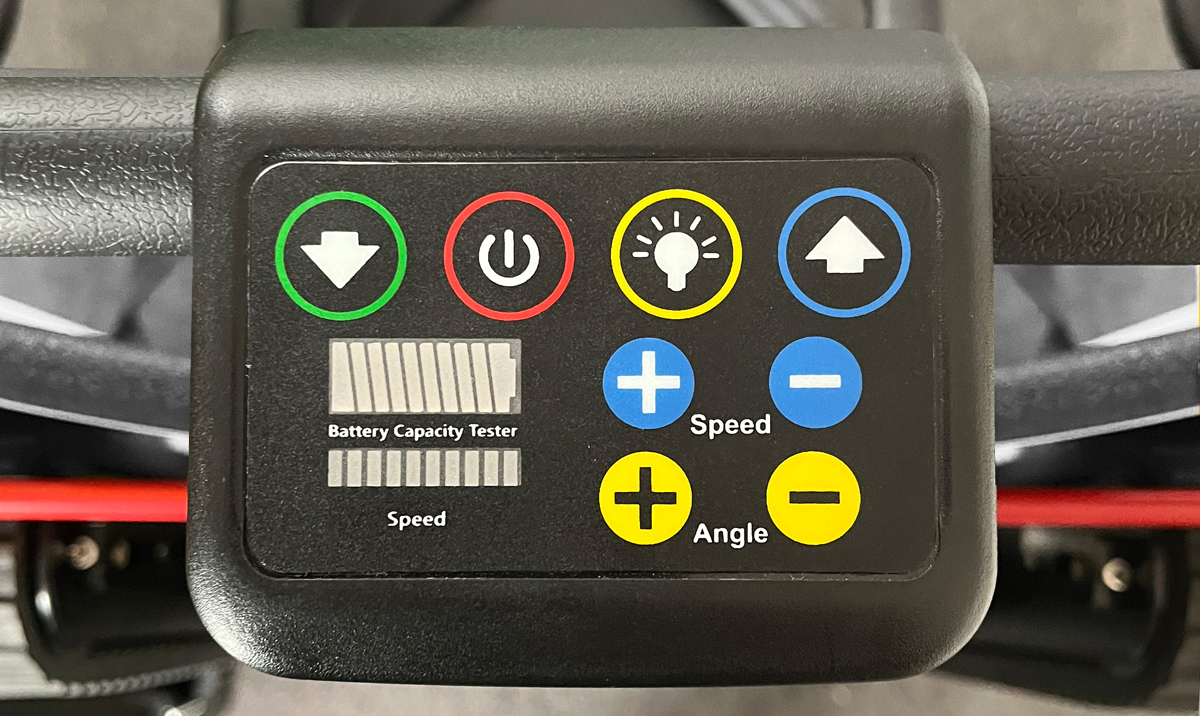

The Escape-Chair® VOLT is powered by battery and has an easy to understand control panel with display that is located on the operating handle. After unfolding the Escape-Chair® VOLT it is immediately ready to use. These products are also known as mobile stair lifts or mobile stair chairs.
Can be operated by just one person by simply pushing the operating handle down in the direction of the stairs.
The answer to solving your mobility problem.
Usage
The Escape-Chair® Volt is the perfect daily solution for your mobility problem in a healthcare environment, rescue environment or public building.
Advantages
- The powered motor makes evacuating stairs up much easier.
- Operated by only 1 person.
- Ideal for quick and safe evacuation/movement (4 speeds).
- Can also be used as a daily mobility aid.
- Ready for use within seconds.
- Lithium battery enough for ± 40 floors.
- Equipped with arm and footrest.
- Operating handle adjustable to 4 heights.
- Anti-blocking system on motor.
- Extra-large wheels for more comfort and easier handling.
- Battery indicator on display.
- LED lighting for evacuation/rescue in dark conditions.
- Optional: 10G crash test mounting standard for in vehicles.
- CE certified.
Demonstration and advice
No two buildings are the same and no two situations are the same. Our expert product specialists will provide advice on evacuation concepts for your Organisation. We share the same passion in helping you to make the best choice, when it comes to investing in the right evacuation equipment. So before you order, why not contact us for some expert help!
Specifications

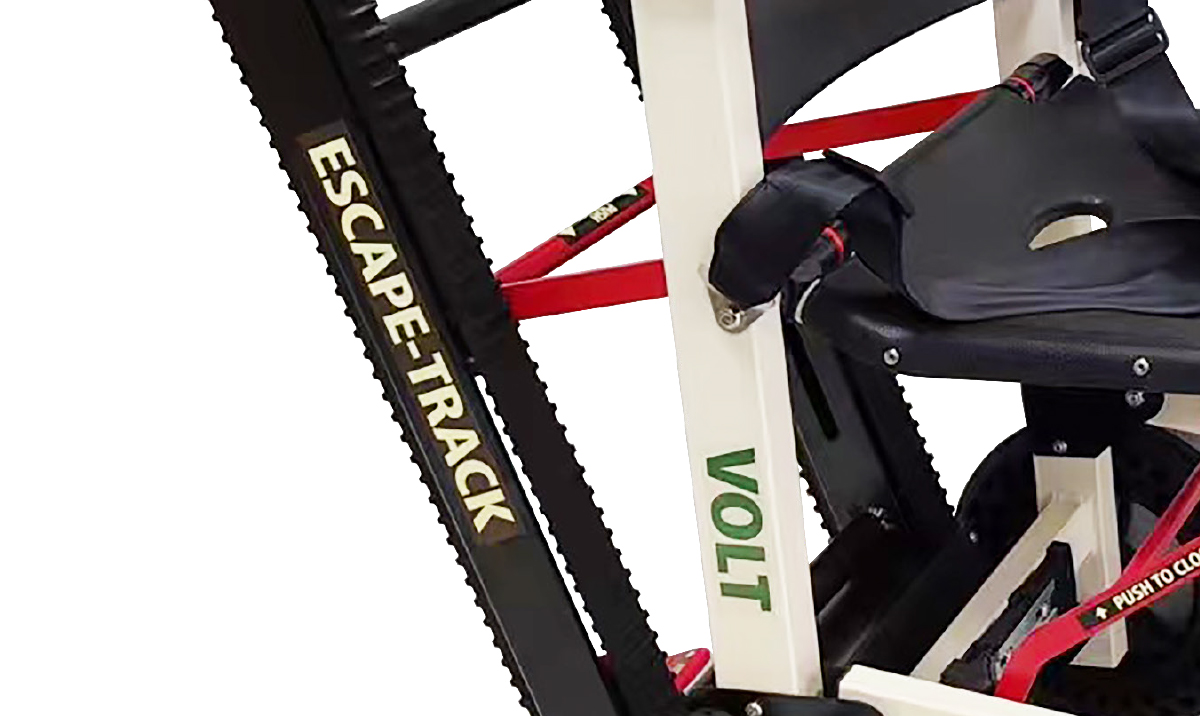

- Tracks with teeth for suprior grip
- Dimensions folded up (height x width x depth): 109 x 63 x 29 cm
- Number of speeds: 4
- Unlocking function tracks

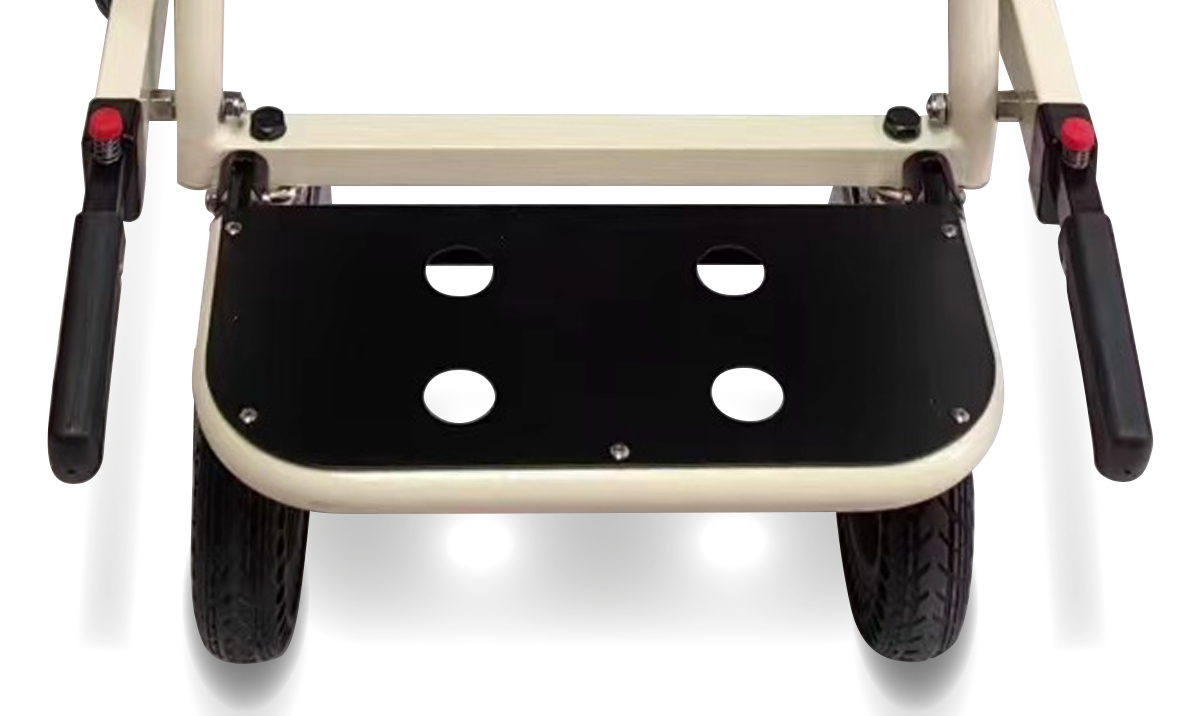

- Foldable Footrest

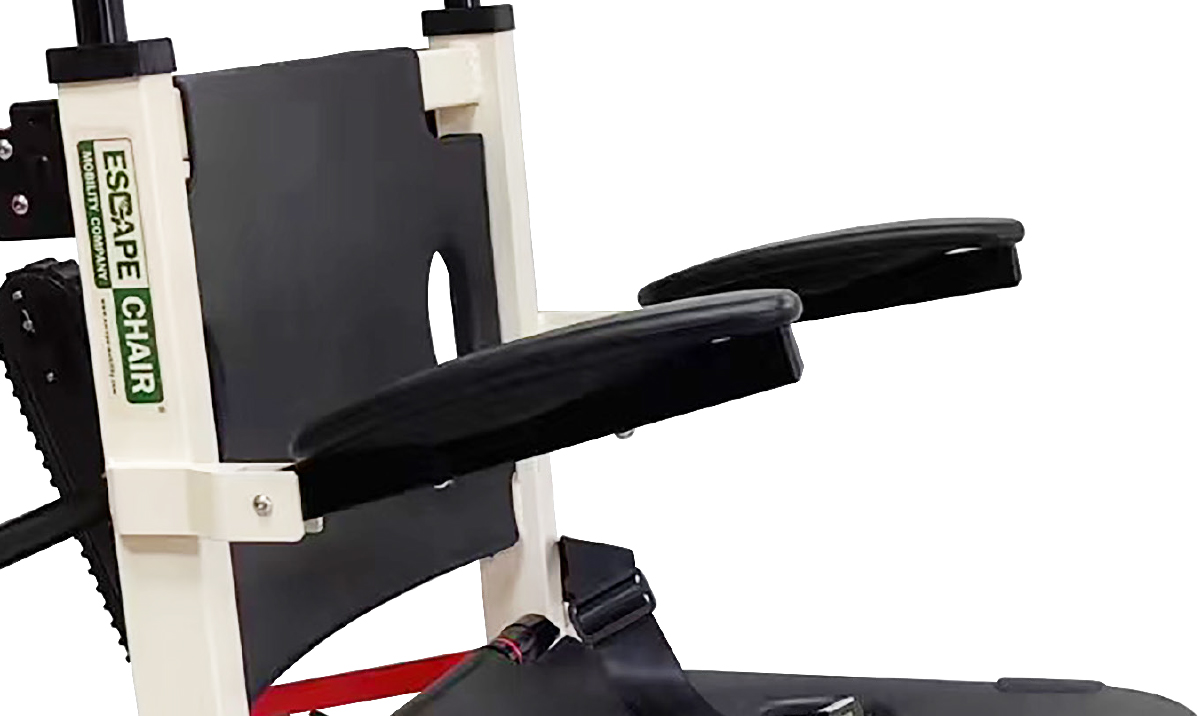

- Extra wide armrests
- LED lightning for dark environment
- 4 height adjustable operating handle

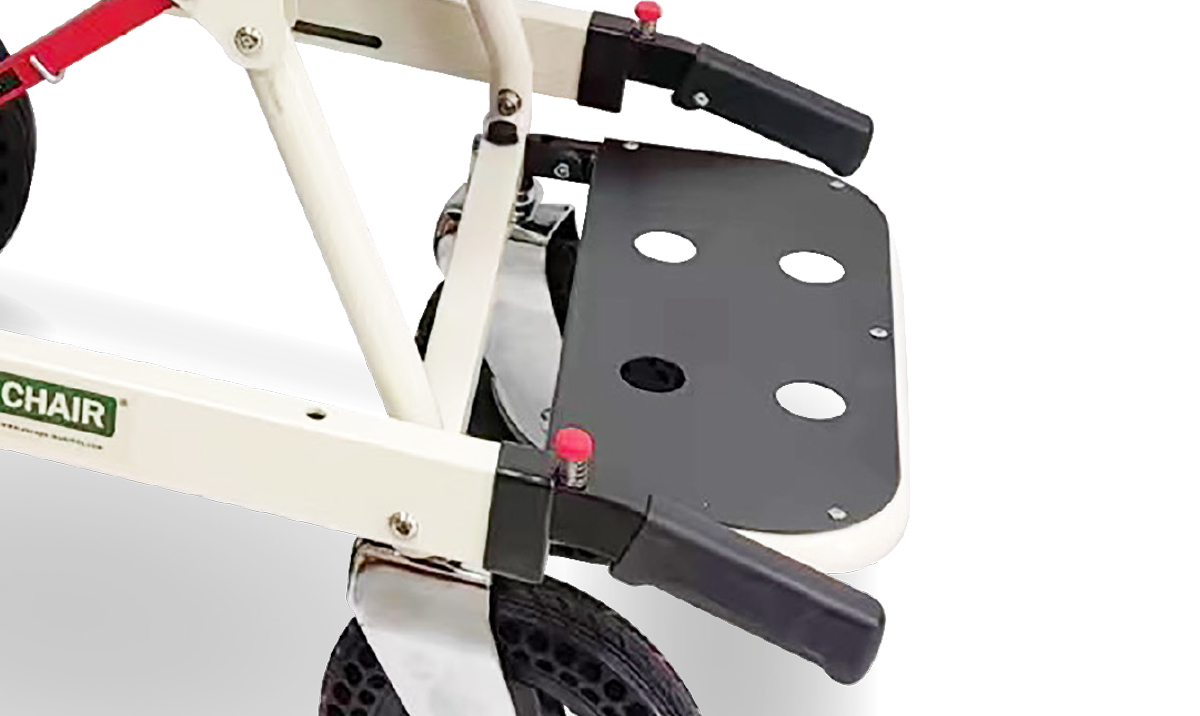

- Carrying handles front & back
- Maximum load baring: 254 kg
- Maximum stair gradient: 45°
- Weight: ± 37 kg
- Using time when fully charged: ± 2 hours (± 40 floors)
- Charging time battery: 5-6 hours
- Battery life: ± 2 – 3 years
- Including wall mounting bracket (installed 64,5 cm from ground)
- Optional: Extra battery pack
- Optional: 10G crash test bracket for Ambulances / vehicles
- Optional: flame retardant dust cover
- CE certified
- Warranty on non-wearing parts: 1 year (Battery 6 months)
